Question: JUST NEED ( B ) The switch in the figure below is open for t 0 and is then thrown closed at time t =

JUST NEED (B)
The switch in the figure below is open for
t 0
and is then thrown closed at time
t =0.
Assume
R =5.00\Omega ,
L =3.00 H,
and
e m f =18.0 V.
Find the following as functions of time thereafter. (Do not enter units in your answers. Assume current is in A and time is in s. Use the following as necessary: t.)

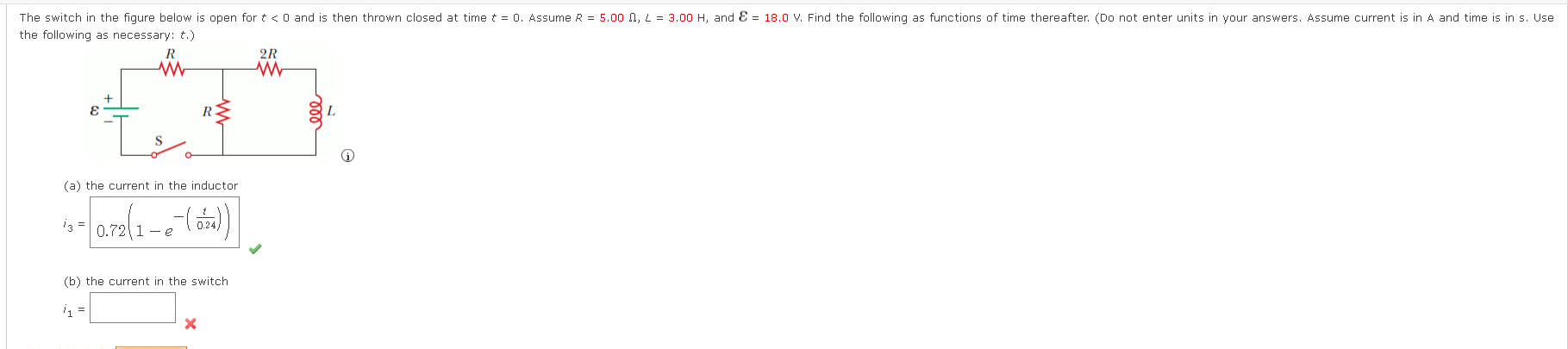

Two adjacent rectangular loops, one to the left of the other, form a circuit. The left side of the left loop contains a battery of emf , for which the positive terminal is above the negative terminal. The top side of the left loop contains a resistor R, and the top side of the right loop contains a resistor 2R. The right side of the right loop contains an inductor L. The bottom side of the left loop contains an open switch S. The right side of the left loop, which is the left side of the right loop, contains another resistor R.
(b) the current in the switch
i1=
