Question: K - Map for a 4 - variable function Simplify the Boolean function F = A ' C ' D ' + A ' D

K-Map for a 4-variable function

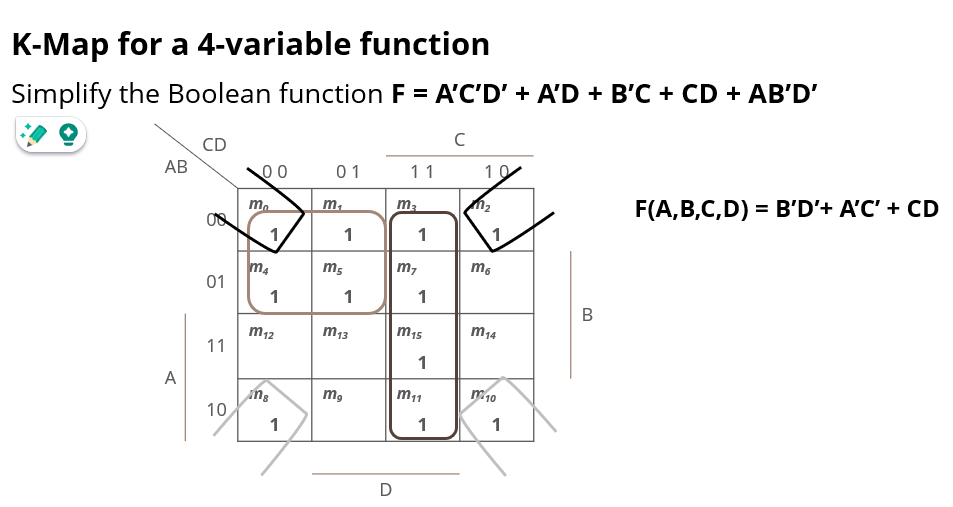

Simplify the Boolean function F=A'C'D'+A'D+B'C+CD+AB'D'
F(A,B,C,D)=B'D'+A'C'+CD
can you show each rectangle different color?
K - Map for a 4 - variable function Simplify the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
