Question: kis. 8. Determine the maximum normal stress on the cross section of the supporting member at section a-a, when a load has a weight

kis. 8. Determine the maximum normal stress on the cross section of

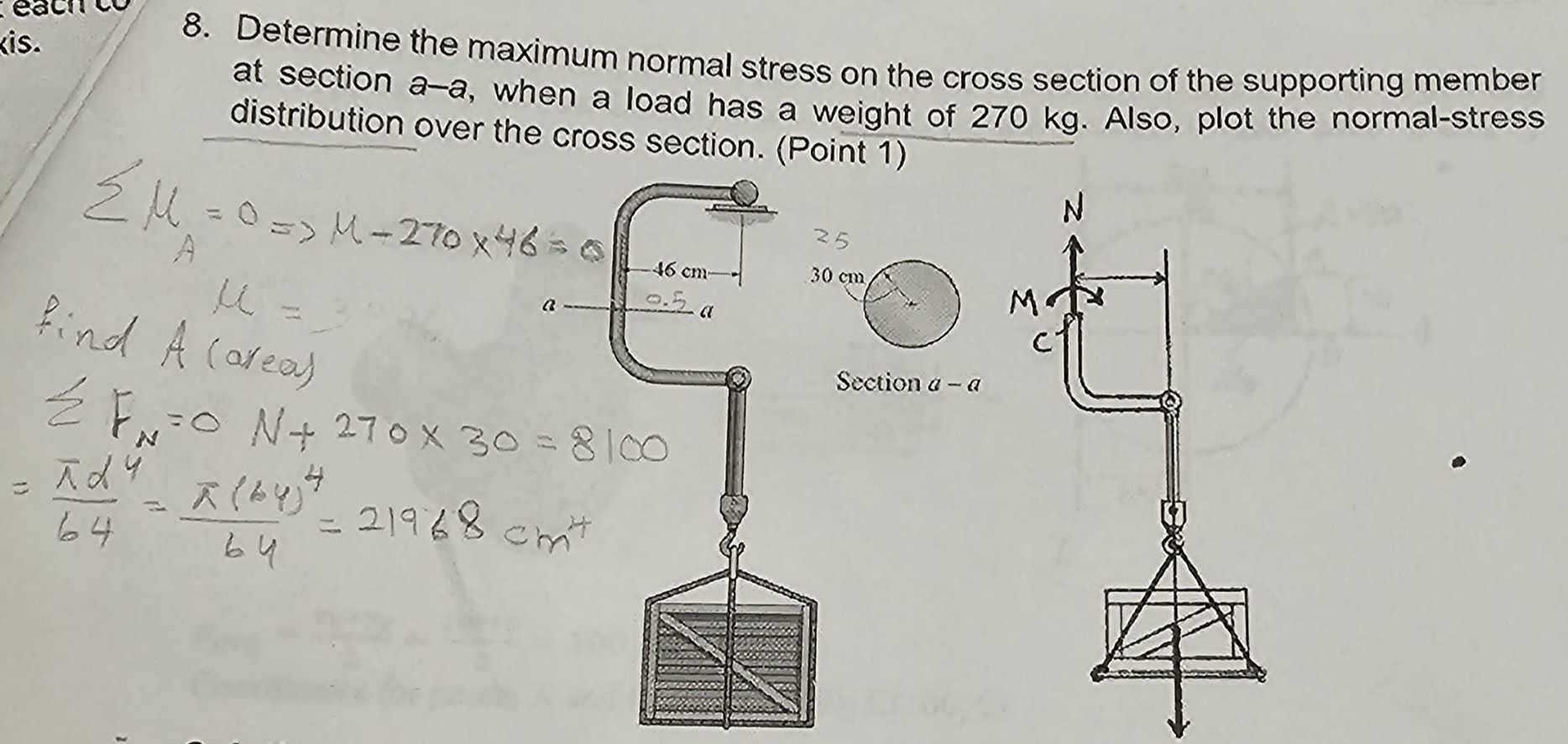

kis. 8. Determine the maximum normal stress on the cross section of the supporting member at section a-a, when a load has a weight of 270 kg. Also, plot the normal-stress distribution over the cross section. (Point 1) EM = 0 => M-270x46=0 A find A (area) 25 46 cm- 30 cm M Fx =0 N + 270 x 30 = 8100 xd4 x (64) - 21968 cm+ 64 F 64 = Section a - a N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
