Question: Knowing that the tension in cable B C is 7 8 5 N , determine the resultant of the three forces exerted at Point B

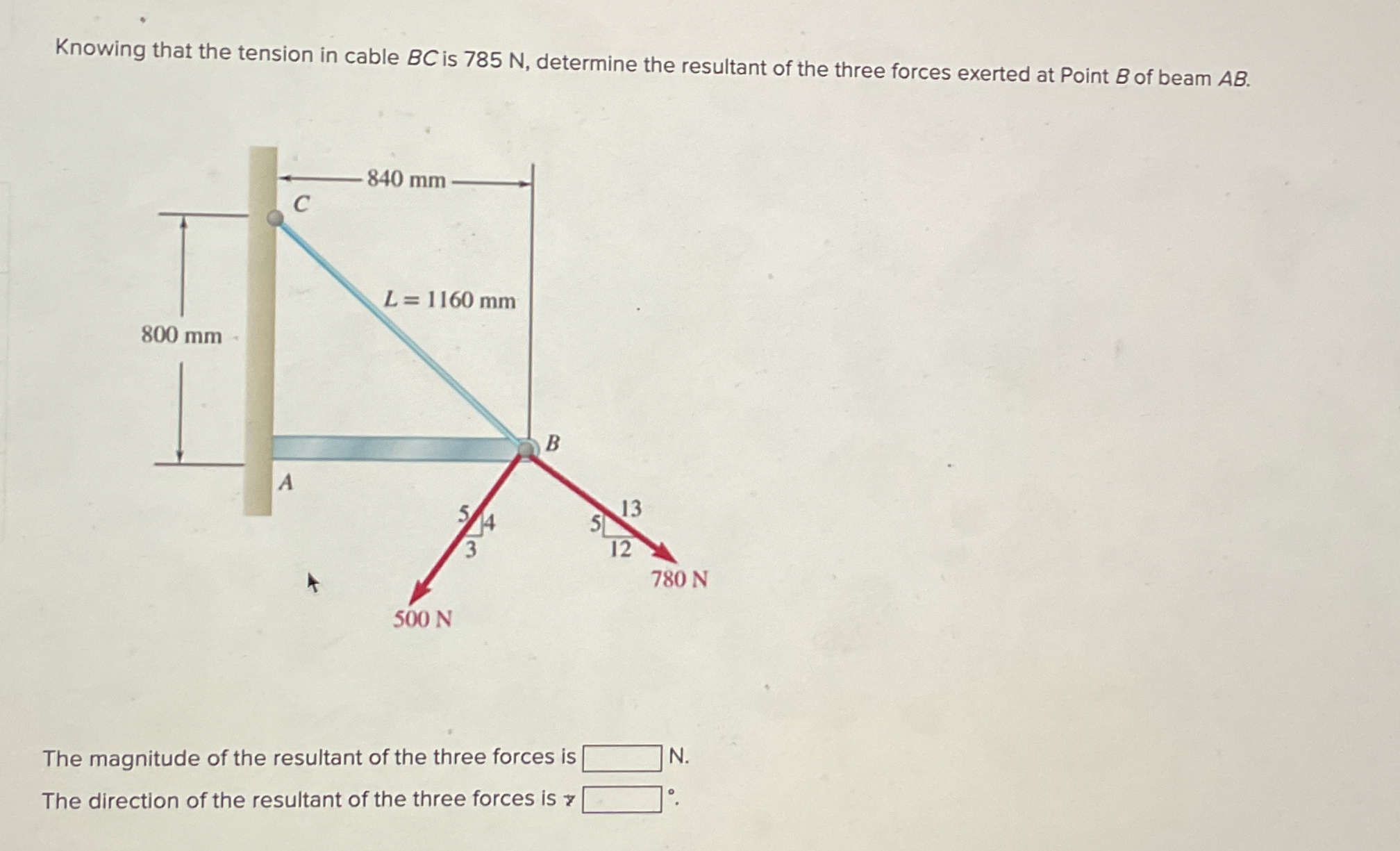

Knowing that the tension in cable BC is 785 N , determine the resultant of the three forces exerted at Point B of beam AB.
The magnitude of the resultant of the three forces is N.
The direction of the resultant of the three forces is 7
Knowing that the tension in cable B C is 7 8 5 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Dimensions in mm For the plate , determine the tensions in cables \ ( A B \ ) and \ ( A D \ ) knowing that the tension in cable \ ( A C \ ) is 5 4 N and that the resultant of the forces exerted by...

Q:

For the beam of Problem 2.35, determine (a) The required tension in cable BC if the resultant of the three forces exerted at point B is to be vertical, (b) The corresponding magnitude of the...

Q:

For the beam of Problem 2.37, determine (a) The required tension in cable BC if the resultant of the three forces exerted at point B is to be vertical, (b) The corresponding magnitude of the...

Q:

1) A steel tank is to be positioned in an excavation. Knowing that a = 20", determine by trigonometry (a) the required magnitude of the force P if the resultant R of the two forces applied at A is to...

Q:

Knowing that the tension in cable BC is 725N, determine the resultant of the three forces exerted at Point B of beam AB. The magnitude of the resultant of the three forces is n. The direction of the...

Q:

2 . 3 5 Knowing that = 3 5 , determine the resultant of the three fo shown. Fig. P 2 . 3 5 2 . 3 6 Knowing that the tension in cable B C is 7 2 5 N , determine the resu tant of the three forces...

Q:

Knowing that the tension in cable B C is 8 2 0 N , determine the resultant of the three forces exerted at Point B of beam A B . The magnitude of the resultant of the three forces is N . The direction...

Q:

Knowing that the tension in cable B C is 7 3 0 N , determine the resultant of the three forces exerted at Point B of beam A B . The magnitude of the resultant of the three forces is The direction of...

Q:

In the given figure, P = 4 1 l b . nces Determine the required tension in cable A C , knowing that the resultant of the three forces exerted at point C of boom B C must be directed along B C . The...

Q:

Exercise 1 : Determine the magnitude and direction of the resultant of the three forces shown.Exercise 2 : Knowing that the tension in cable BC is 7 2 5 N , determine the magnitude and direction of...
