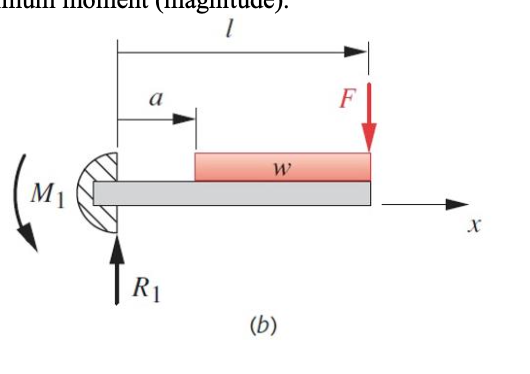

Question: l = 0 . 6 m , a = 0 . 2 8 m , b = 0 . 5 m , F = 2

l=0.6m, a=0.28m, b=0.5m, F=250N, w=250N/m
find M1 and R1 and draw V and M diagram. maximum V and M
l = 0 . 6 m , a = 0 . 2 8 m , b = 0 . 5 m , F = 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
