Question: L Activity 1: Course Cl X D2L Activity 1: Course CL X D21 Activity 3: Analyzing X Search Results | Cou X C Chegg Search

L Activity 1: Course Cl X D2L Activity 1: Course CL

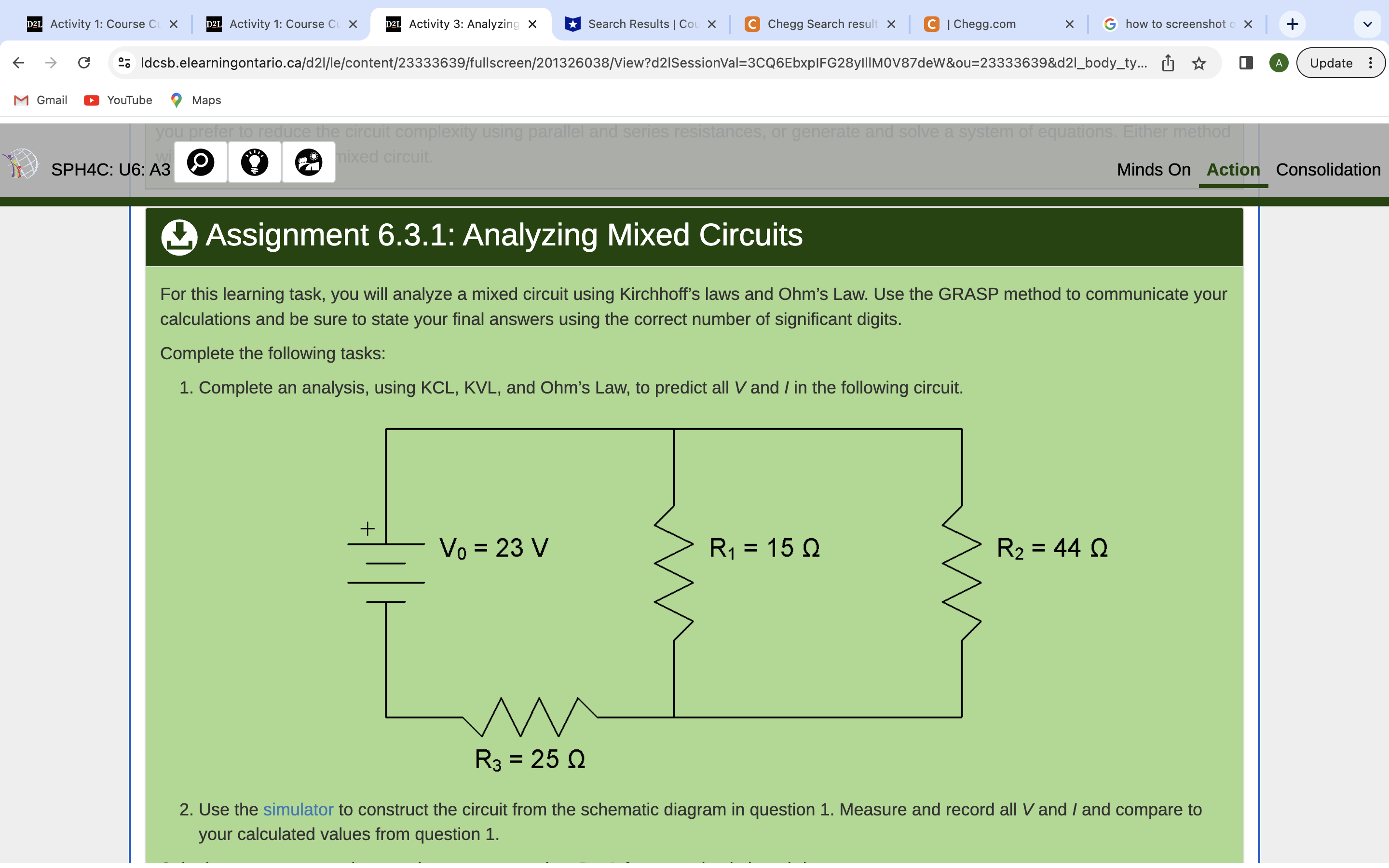

L Activity 1: Course Cl X D2L Activity 1: Course CL X D21 Activity 3: Analyzing X Search Results | Cou X C Chegg Search result X | Chegg.com X G how to screenshot o x + C 9 Idcsb.elearningontario.ca/d21/le/content/23333639/fullscreen/201326038/View?d21SessionVal=3CQ6EbxpiFG28yIllMOV87deW&ou=23333639&d21_body_ty... j Update : M Gmail YouTube Maps SPH4C: U6: A3 ixed circuit. Minds On Action Consolidation Assignment 6.3.1: Analyzing Mixed Circuits For this learning task, you will analyze a mixed circuit using Kirchhoff's laws and Ohm's Law. Use the GRASP method to communicate your calculations and be sure to state your final answers using the correct number of significant digits. Complete the following tasks: 1. Complete an analysis, using KCL, KVL, and Ohm's Law, to predict all V and / in the following circuit. + Vo = 23 V R1 = 15 0 R2 = 44 0 R3 = 25 0 2. Use the simulator to construct the circuit from the schematic diagram in question 1. Measure and record all V and / and compare to your calculated values from question 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
