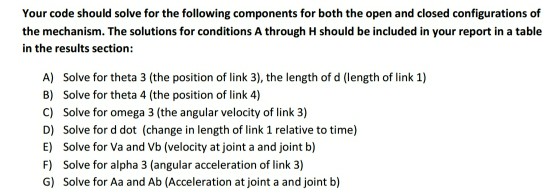

Question: l: is project you will write a MATLAB code to soive for the different angles, velccities, end accelerations in a slider crank mechanism using the

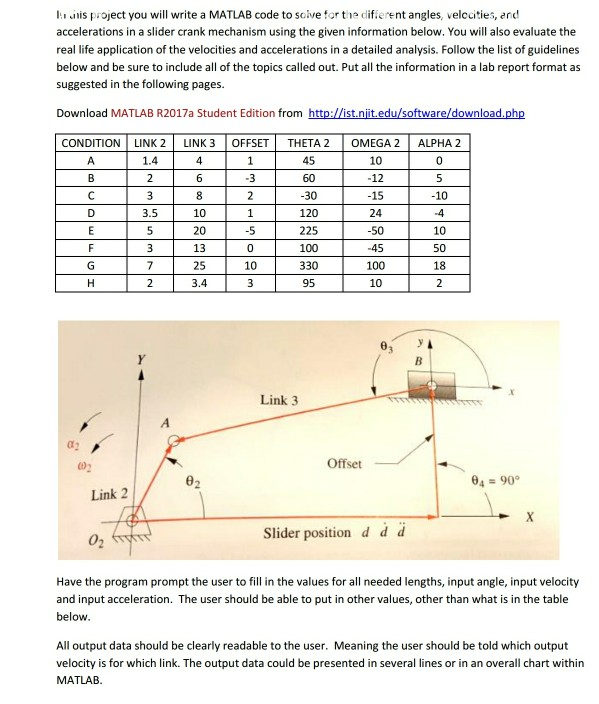

l: is project you will write a MATLAB code to soive for the different angles, velccities, end accelerations in a slider crank mechanism using the given information below. You will also evaluate the real life application of the velocities and accelerations in a detailed analysis. Follow the list of guidelines below and be sure to include all of the topics called out. Put all the information in a lab report format as suggested in the following pages. Download MATLAB R2017a Student Edition from wn CONDITION | LINK 2 | LINK 3 OFFSET | THETA 2 OMEGA 2 10 12 15 24 ALPHA 2 1.4 45 60 30 120 225 100 330 95 6 10 10 20 13 25 3.4 3.5 -45 100 10 10 50 18 0 10 Link 3 Offset Link 2 Slider position d d d Have the program prompt the user to fill in the values for al needed lengths, input angle, input velocity and input acceleration. The user should be able to put in other values, other than what is in the table below All output data should be clearly readable to the user. Meaning the user should be told which output velocity is for which link. The output data could be presented in several lines or in an overall chart within MATLAB
