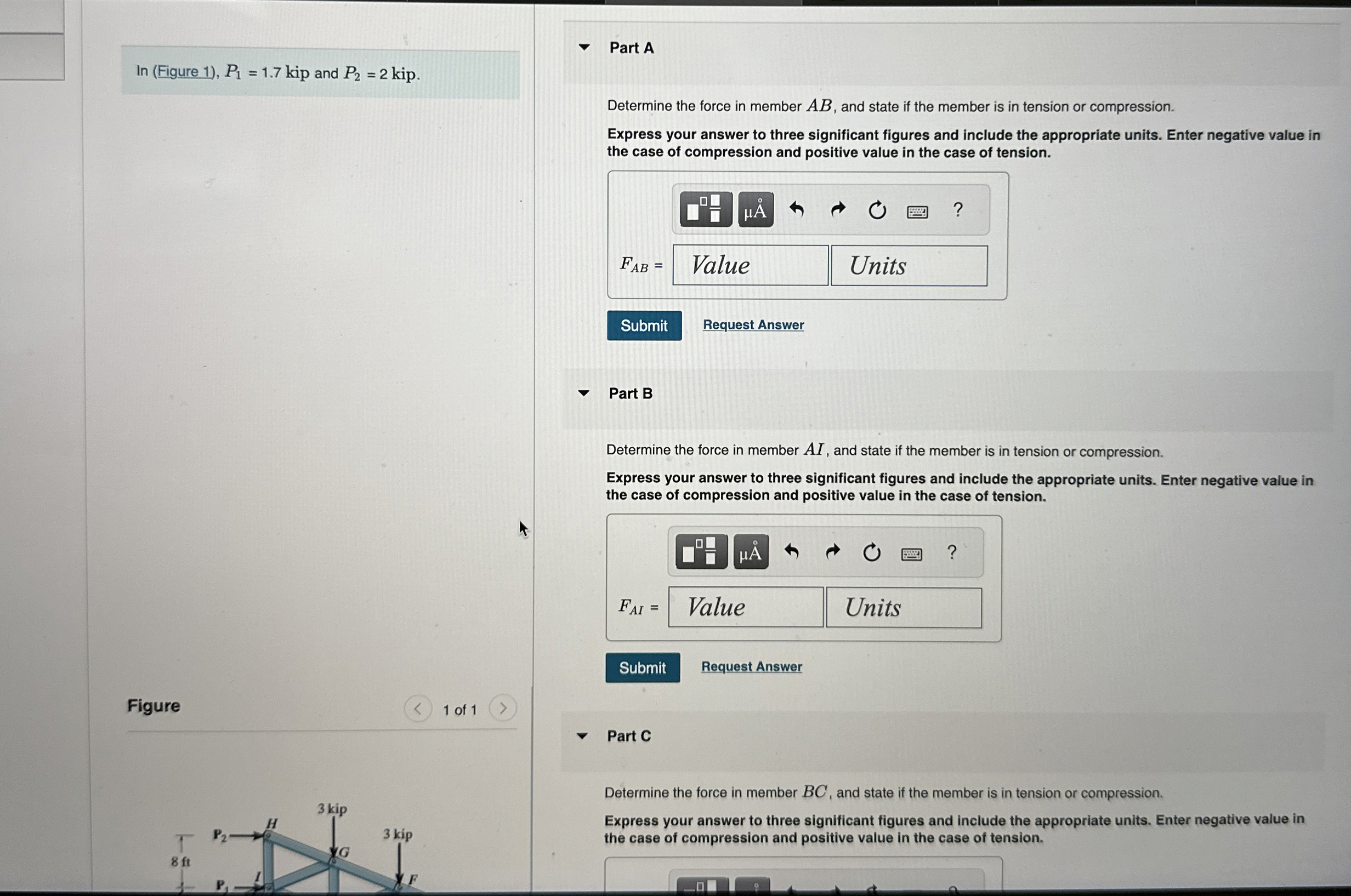

Question: l n ( Figure 1 ) , P 1 = 1 . 7 kip and P 2 = 2 kip. Part A Determine the force

ln(Figure 1),P1=1.7kip and P2=2kip.
Part A
Determine the force in member AB, and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in
the case of compression and positive value in the case of tension.
FAB=
Part B
Determine the force in member AI, and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in
the case of compression and positive value in the case of tension.
Request Answer
Figure
1 of 1
Part C
Determine the force in member BC, and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in
the case of compression and positive value in the case of tension.
l n ( Figure 1 ) , P 1 = 1 . 7 kip and P 2 = 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
