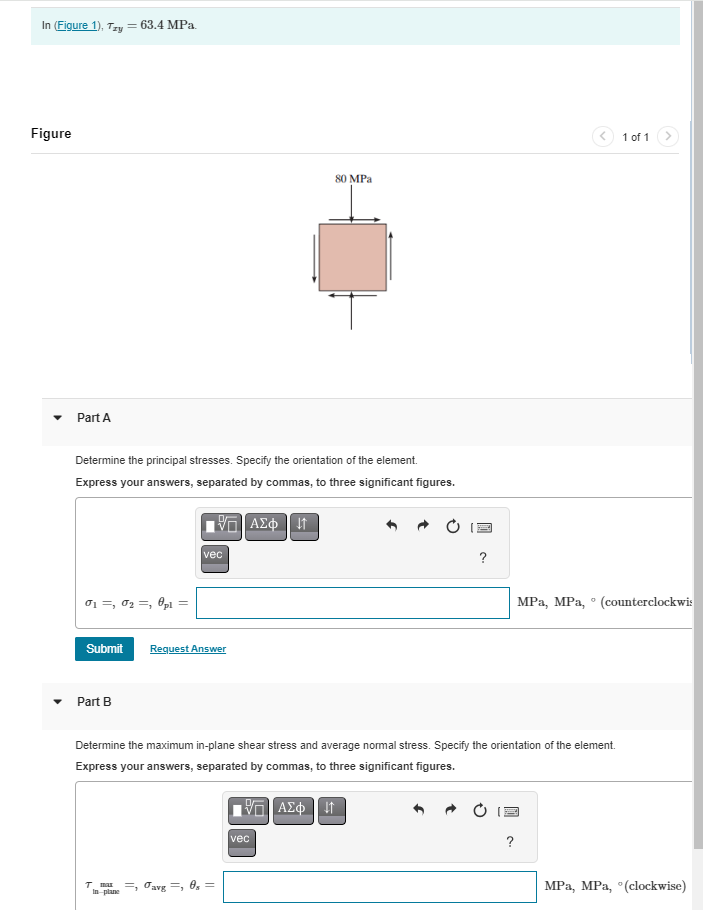

Question: l n ( Figure 1 ) , x y = 6 3 . 4 MPa. Figure Part A Determine the principal stresses. Specify the orientation

ln(Figure 1),xy=63.4MPa.
Figure
Part A
Determine the principal stresses. Specify the orientation of the element.
Express your answers, separated by commas, to three significant figures.
Part B
Determine the maximum in-plane shear stress and average normal stress. Specify the orientation of the element.
Express your answers, separated by commas, to three significant figures.
ln(Figure 1),xy=63.4MPa. Figure Part A Determine the principal stresses. Specify the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
