Question: Lab 01 - Alpha Inc. physical network diagram Admin: 10.10.1.0 / 24 network HR: 192.168.1.0/24 network Name: N Finance: 10.10.2.0 / 24 network Marketing: 192.168.2.0

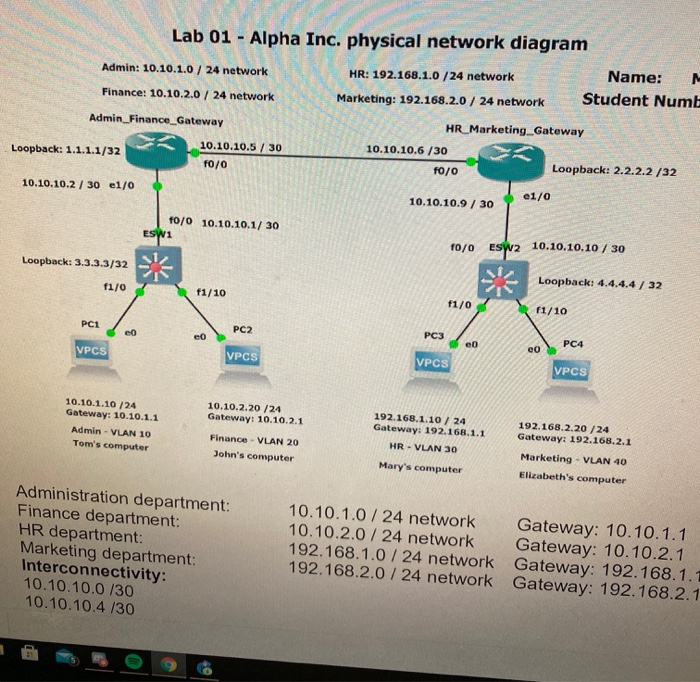

Lab 01 - Alpha Inc. physical network diagram Admin: 10.10.1.0 / 24 network HR: 192.168.1.0/24 network Name: N Finance: 10.10.2.0 / 24 network Marketing: 192.168.2.0 / 24 network Student Numb Admin_Finance_Gateway HR_Marketing Gateway 10.10.10.5 / 30 10.10.10.6 /30 Loopback: 1.1.1.1/32 f0/0 fo/0 Loopback: 2.2.2.2 /32 10.10.10.2 / 30 e1/0 10.10.10.9 / 30 e1/0 f0/0 10.10.10.1/30 ESWI f0/0 ESW2 10.10.10.10 / 30 Loopback: 3.3.3.3/32 f1/0 Loopback: 4.4.4.4 / 32 f1/10 f1/0 f1/10 PC1 eo PC2 eo PC3 e0 PC4 VPCS eo VPCS VPCS VPCS 10.10.1.10 /24 Gateway: 10.10.1.1 Admin - VLAN 10 Tom's computer 10.10.2.20/24 Gateway: 10.10.2.1 192.168.1.10 / 24 Gateway: 192.168.1.1 HR - VLAN 30 192.168.2.20/24 Gateway: 192.168.2.1 Finance - VLAN 20 John's computer Mary's computer Marketing - VLAN 40 Elizabeth's computer Administration department: Finance department: HR department: Marketing department: Interconnectivity: 10.10.10.0 /30 10.10.10.4 /30 10.10.1.0/24 network Gateway: 10.10.1.1 10.10.2.0 / 24 network Gateway: 10.10.2.1 192.168.1.0 / 24 network Gateway: 192.168.1.1 192.168.2.0 / 24 network Gateway: 192.168.2.1 Lab 01 - Alpha Inc. physical network diagram Admin: 10.10.1.0 / 24 network HR: 192.168.1.0/24 network Name: N Finance: 10.10.2.0 / 24 network Marketing: 192.168.2.0 / 24 network Student Numb Admin_Finance_Gateway HR_Marketing Gateway 10.10.10.5 / 30 10.10.10.6 /30 Loopback: 1.1.1.1/32 f0/0 fo/0 Loopback: 2.2.2.2 /32 10.10.10.2 / 30 e1/0 10.10.10.9 / 30 e1/0 f0/0 10.10.10.1/30 ESWI f0/0 ESW2 10.10.10.10 / 30 Loopback: 3.3.3.3/32 f1/0 Loopback: 4.4.4.4 / 32 f1/10 f1/0 f1/10 PC1 eo PC2 eo PC3 e0 PC4 VPCS eo VPCS VPCS VPCS 10.10.1.10 /24 Gateway: 10.10.1.1 Admin - VLAN 10 Tom's computer 10.10.2.20/24 Gateway: 10.10.2.1 192.168.1.10 / 24 Gateway: 192.168.1.1 HR - VLAN 30 192.168.2.20/24 Gateway: 192.168.2.1 Finance - VLAN 20 John's computer Mary's computer Marketing - VLAN 40 Elizabeth's computer Administration department: Finance department: HR department: Marketing department: Interconnectivity: 10.10.10.0 /30 10.10.10.4 /30 10.10.1.0/24 network Gateway: 10.10.1.1 10.10.2.0 / 24 network Gateway: 10.10.2.1 192.168.1.0 / 24 network Gateway: 192.168.1.1 192.168.2.0 / 24 network Gateway: 192.168.2.1
