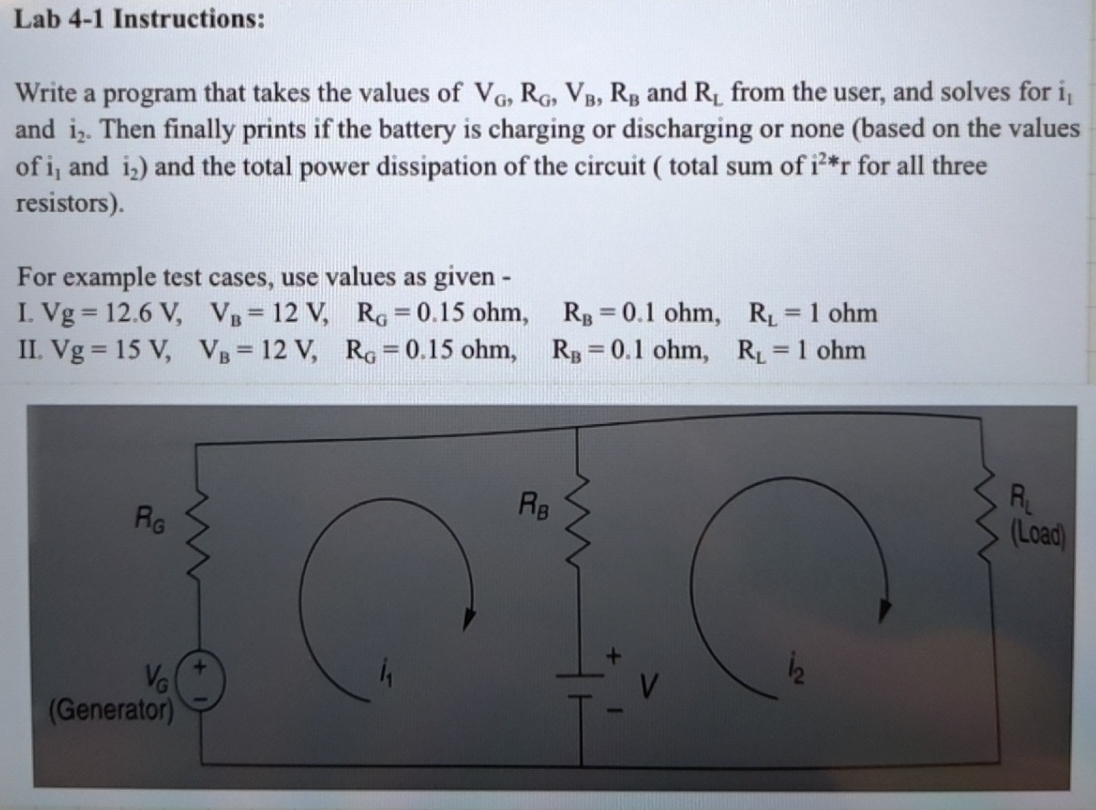

Lab $4-1$ Instructions:

Write a program that takes the values of $V_G,R_G,V_B,R_B$ and $R_L$ from the user, and solves for $i_1$ and $i_2.$ Then finally prints if the battery is charging or discharging or none $($based on the values of $i_1$ and $i_2)$ and the total power dissipation of the circuit $($ total sum of $i^{2**}r$ for all three resistors$).$

For example test cases, use values as given $-$

I. $Vg=12\mathrm{.}6V,V_B=12V,R_G=0\mathrm{.}15$ohm,$R_B=0\mathrm{.}1$ohm,$R_L=1$ohm

II$.Vg=15V,V_B=12V,R_G=0\mathrm{.}15$ohm,$R_B=0\mathrm{.}1$ohm,$R_L=1$ohm
