Question: larr A Figure 2 Problem 3 ( 2 5 points ) Calculate the forces in the members 1 , 2 , 6 , 7 and

larr
A
Figure 2
Problem 3(25 points)

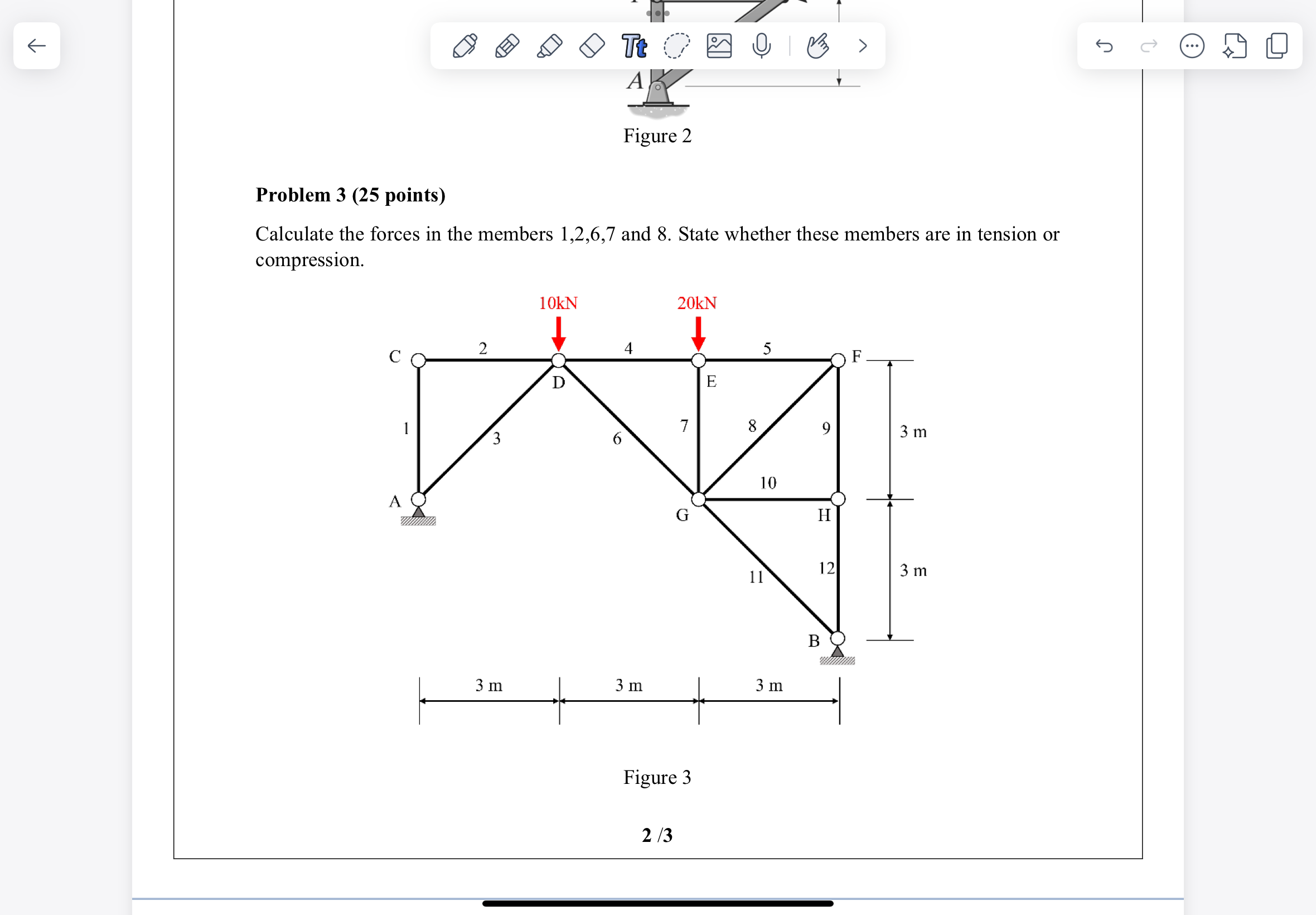

Calculate the forces in the members 1,2,6,7 and 8. State whether these members are in tension or compression.
23
larr A Figure 2 Problem 3 ( 2 5 points )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
