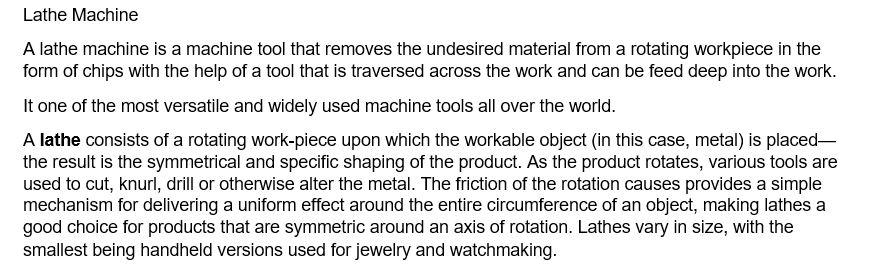

Lathe Machine

A lathe machine is a machine tool that removes the undesired material from a rotating workpiece in the form of chips with the help of a tool that is traversed across the work and can be feed deep into the work.

It one of the most versatile and widely used machine tools all over the world.

A lathe consists of a rotating work-piece upon which the workable object (in this case, metal) is placedthe result is the symmetrical and specific shaping of the product. As the product rotates, various tools are used to cut, knurl, drill or otherwise alter the metal. The friction of the rotation causes provides a simple mechanism for delivering a uniform effect around the entire circumference of an object, making lathes a good choice for products that are symmetric around an axis of rotation. Lathes vary in size, with the smallest being handheld versions used for jewelry and watchmaking.

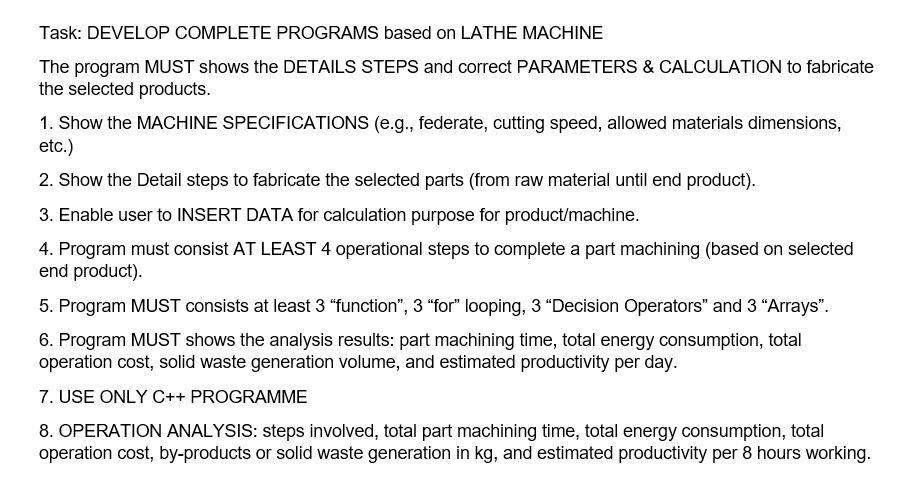

Task: DEVELOP COMPLETE PROGRAMS based on LATHE MACHINE

The program MUST shows the DETAILS STEPS and correct PARAMETERS & CALCULATION to fabricate the selected products.

1. Show the MACHINE SPECIFICATIONS (e.g., federate, cutting speed, allowed materials dimensions, etc.)

2. Show the Detail steps to fabricate the selected parts (from raw material until end product).

3. Enable user to INSERT DATA for calculation purpose for product/machine.

4. Program must consist AT LEAST 4 operational steps to complete a part machining (based on selected end product).

5. Program MUST consists at least 3 function, 3 for looping, 3 Decision Operators and 3 Arrays.

6. Program MUST shows the analysis results: part machining time, total energy consumption, total operation cost, solid waste generation volume, and estimated productivity per day.

7. USE ONLY C++ PROGRAMME

8. OPERATION ANALYSIS: steps involved, total part machining time, total energy consumption, total operation cost, by-products or solid waste generation in kg, and estimated productivity per 8 hours working.
