Learning Goal: Part A

Begin by finding the support reactions for the beam using the free$-$body diagram shown in $($Figure $2).$ What is the tension in the cable?

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

Part B

What is the horizontal reaction force at $A?$ Assume the forces acts in the direction shown, and use an appropriate sign.

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

Part C

What is the vertical reaction force at $A?$

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

Figure

$2$ of $3$ eearning Goal

beam with length $L=2\mathrm{.}1m$ is supported by a pin joint at A and a cable attached at $C$ as shown in $($Figure $1).$ It is

subjected to the distributed load with $w_1=1\mathrm{.}3k\frac{N}{m}$ and $w_2=1\mathrm{.}9k\frac{N}{m}.$ The angle between the cable and the beam is

$=30.$ Determine the normal force, shear force, and bending moment acting at point $B.$ located $x=0\mathrm{.}6m$ to the left of

he end of the beam.

Express your answer to three significant figures with appropriate units

View Available Hint$($s$)$

Part E

What is the internal shear force at point $B?$ Assume the force acts as shown, and use the appropriate sign for your answer.

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

Part F

What is the internal bending moment at $B?$ Assume the moment acts as shown, and use the appropriate sign for your answer.

Express your answer to three significant figures with appropriate units.

View Available Hint$($s$)$

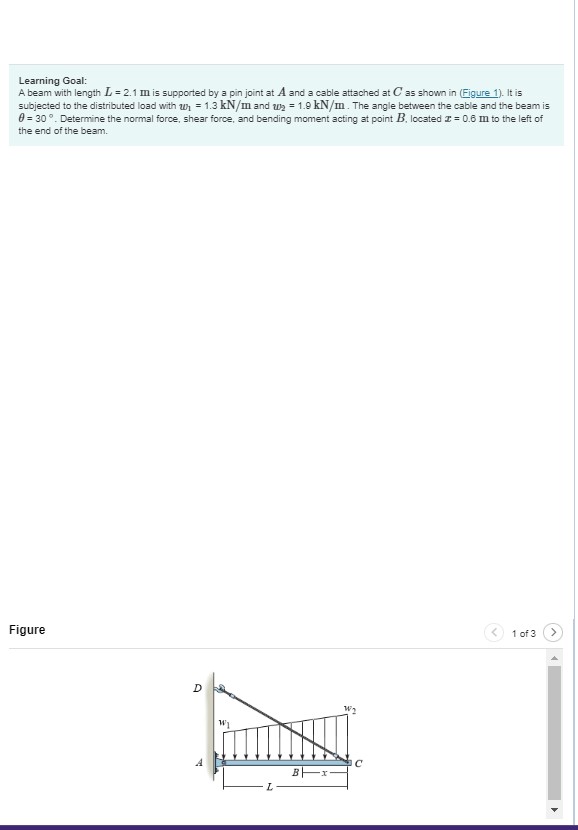

A beam with length $L=2\mathrm{.}1Im$ is supported by a pin joint at A and a cable attached at $C$ as shown in $($Figure $1).$ It is

subjected to the distributed load with $w_1=1\mathrm{.}3k\frac{N}{m}$ and $w_2=1\mathrm{.}9k\frac{N}{m}.$ The angle between the cable and the beam is

$=30.$ Determine the normal force, shear force, and bending moment acting at point $B,$ located $x=0\mathrm{.}6m$ to the left of

the end of the beam.
