Learning Goal:

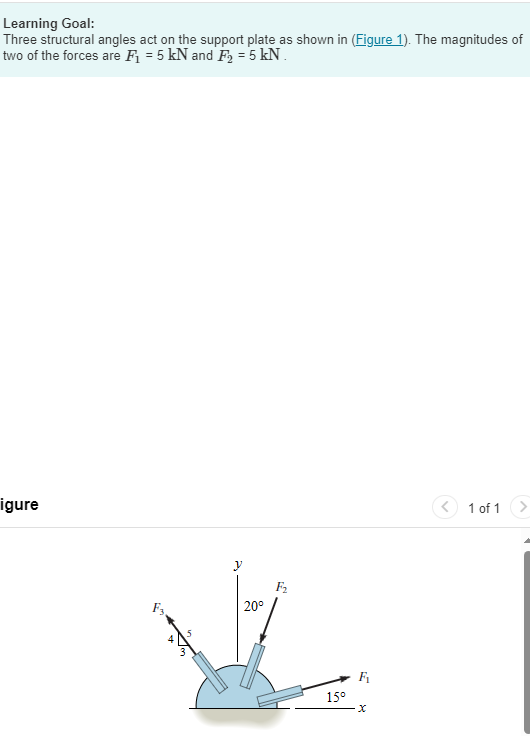

Three structural angles act on the support plate as shown in $($Figure $1).$ The magnitudes of

two Calculate the horizontal component of the resultant force due to F$1$

and F$2.$ B$)$ What is the required magnitude for F$3?$ c$)$ Calculate the verical component on the results force d$)$ Calculate the magnitude of the resultant force.

e$)$ Calculate the direction of the resultant force. Give the angle $\backslash$theta

between the force and the positive x

$-$axis.
