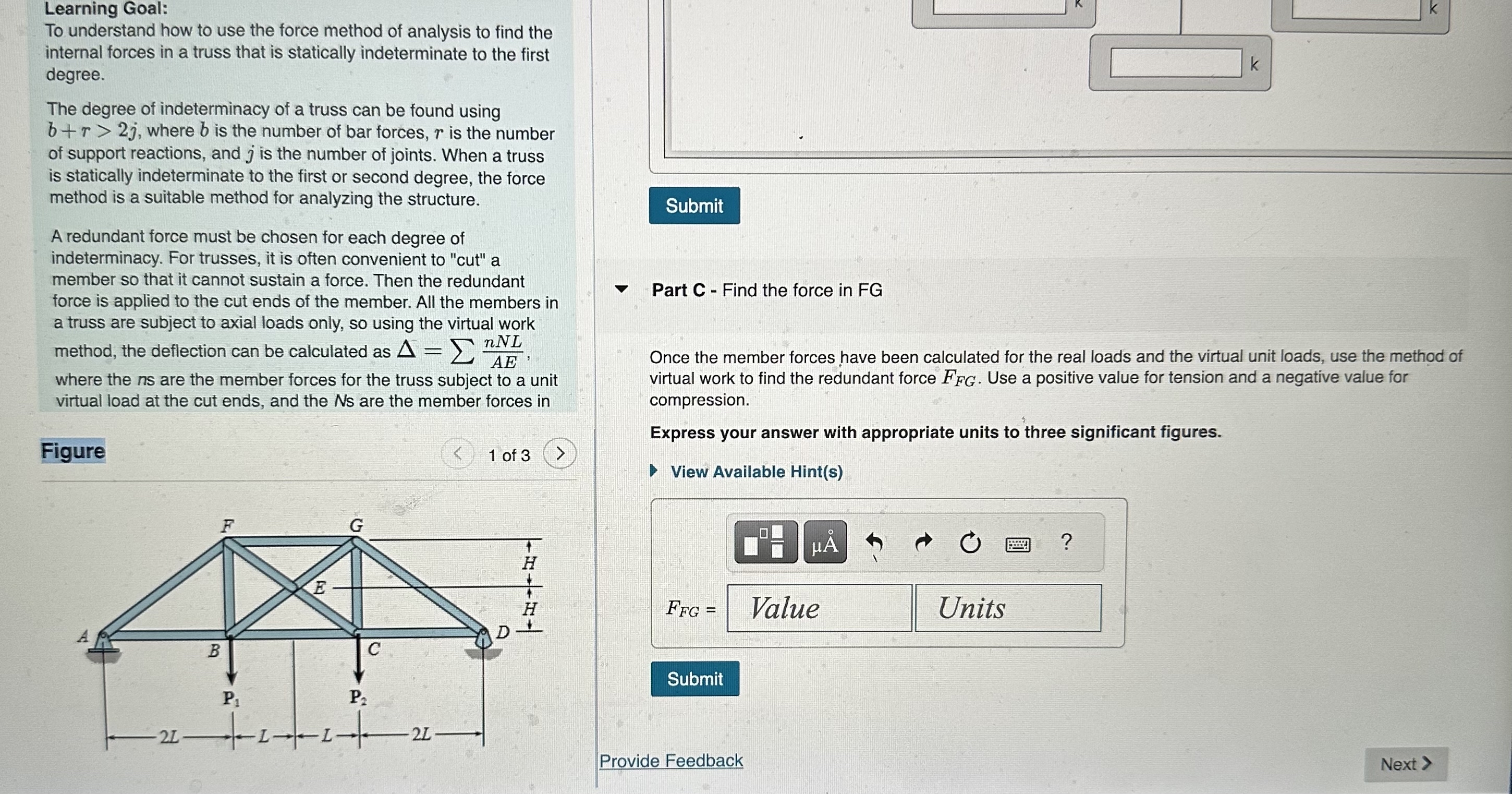

Learning Goal:

To understand how to use the force method of analysis to find the internal forces in a truss that is statically indeterminate to the first degree.

The degree of indeterminacy of a truss can be found using $b+r>2j,$ where $b$ is the number of bar forces, $r$ is the number of support reactions, and $j$ is the number of joints. When a truss is statically indeterminate to the first or second degree, the force method is a suitable method for analyzing the structure.

A redundant force must be chosen for each degree of indeterminacy. For trusses, it is often convenient to "cut" a member so that it cannot sustain a force. Then the redundant force is applied to the cut ends of the member. All the members in a truss are subject to axial loads only, so using the virtual work method, the deflection can be calculated as $={\displaystyle \underset{?}{\overset{?}{}}}\frac{nNL}{AE},$ where the $ns$ are the member forces for the truss subject to a unit virtual load at the cut ends, and the Ns are the member forces in

$1$ of $3$

Part C $-$ Find the force in $FG$

Once the member forces have been calculated for the real loads and the virtual unit loads, use the method of virtual work to find the redundant force $F_{FG}.$ Use a positive value for tension and a negative value for compression.

Express your answer with appropriate units to three significant figures.
