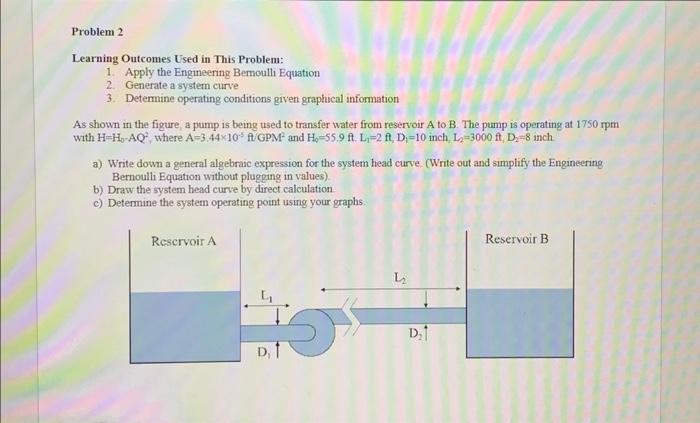

Learning Outcomes Used in This Problem: 1. Apply the Engineering Bemoulli Equation 2. Gencrate a system curve 3. Determine operating conditions given graphical information As shown in the figure, a pump is being used to transfer water from reservoir A to B. The pump is operating at 1750 rpm with H=H0AQ2, where A=3.44105ftGPM2 and H0=55.9ft,L1=2ft,D1=10 inch, L2=3000ft,D2=8 inch a) Write down a general algebraic expression for the system head curve. (Write out and simplify the Engineering Bernoulli Equation without plugging in values) b) Draw the system head curve by direct calculation c) Determine the system operating point using your graphs
