Learning to See Programming Challenge Instructions

The Challenge and Data

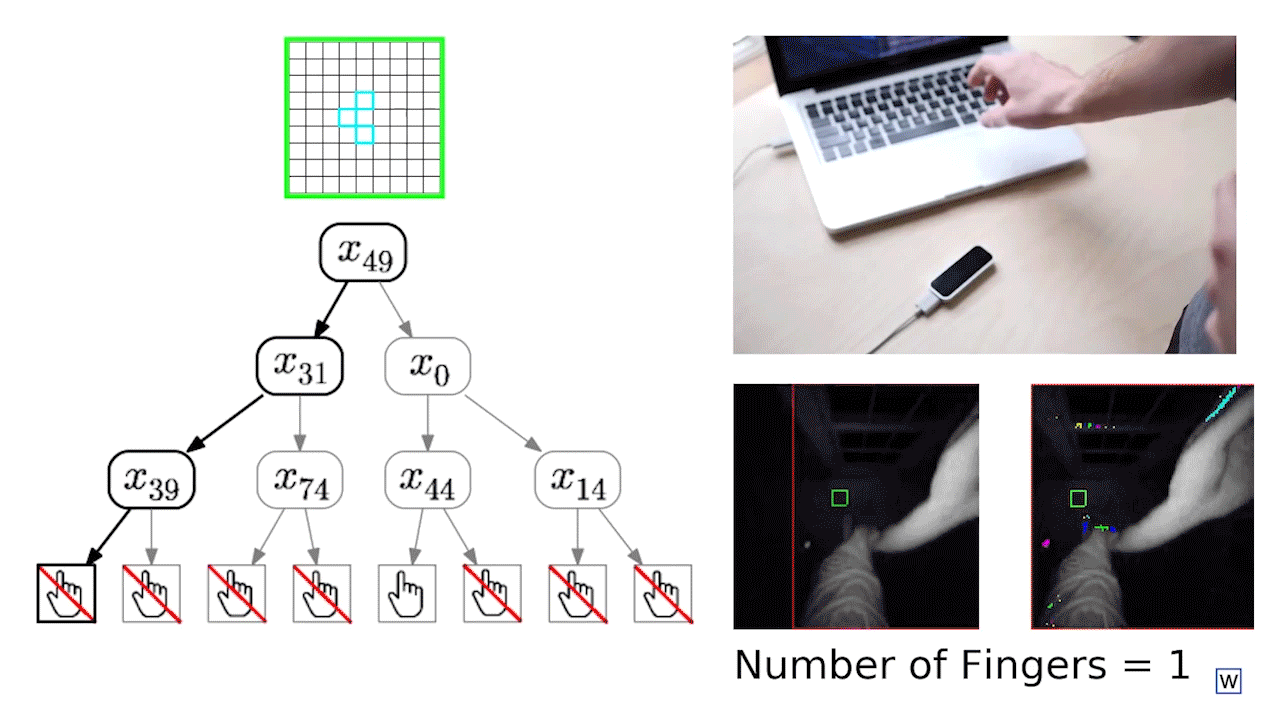

Your mission is to write a computer vision algorithm to count the number fingers in an image from a Leap Motion Infrared Camera. In this repository you'll find a pickle file containing 42 training examples.

In [1]:

%pylab inline import pickle import sys sys.path.append('../util') from data_handling import extractFeatures from image import makeGrayScale

Populating the interactive namespace from numpy and matplotlib

In [2]:

#Load data: with open('data/training_data.p', 'rb') as f: d = pickle.load(f)

In [3]:

fig = figure(0, (20, 12)) for i in range(len(d)): fig.add_subplot(5, 9, i+1) cropped_image = d[i]['image'][d[i]['boxEdges'][2]:d[i]['boxEdges'][3], \ d[i]['boxEdges'][0]:d[i]['boxEdges'][1]] imshow(cropped_image) title(str(d[i]['numFingers'])) axis('off')

The Data

In addition to images and labels, the dataset also includes some other helpful information.

In [4]:

#Data is stored as a list of dicts: len(d)

Out[4]:

42

In [5]:

d[0].keys()

Out[5]:

dict_keys(['box', 'middleFingerPoints', 'handPoints', 'trackingIndices', 'allFingerPoints', 'boxWidth', 'image', 'boxEdges', 'croppedImage', 'numFingers', 'numPointsInBox', 'handEdges', 'indexFingerPoints', 'picCount', 'image1bit', 'ringFingerPoints', 'boxHeight'])

Perhaps the most helpful infomration is finger pixel labels:

In [6]:

exampleIndices = [7, 30, 38]

In [7]:

fig = figure(0, (12, 6)) for i in range(3): fig.add_subplot(1,3,i+1) imageDict = d[exampleIndices[i]] X1, y1 = extractFeatures(imageDict, whichImage = 'image1bit', dist = 4) yImage = y1.reshape(imageDict['boxHeight'], imageDict['boxWidth']) im = makeGrayScale(imageDict) #Paint with matches: im[:,:,0][yImage==1] = 0 im[:,:,1][yImage==1] = .5 im[:,:,2][yImage==1] = 1 imshow(im, interpolation = 'none') title('Number of finger pixels = ' + str(sum(y1==1)))

As you'll see in this series, these labels can be used to train a finger pixel classifier.

#Use this sample code

import numpy as np
	#It's kk to import whatever you want from the local util module if you would like:
	#from util.X import ...
	def count_fingers(im):
	'''
	Example submission for coding challenge.
	Args: im (nxm) unsigned 8-bit grayscale image
	Returns: One of three integers: 1, 2, 3
	'''
	#Let's guess randomly! Maybe we'll get lucky.
	labels = [1, 2, 3]
	random_integer = np.random.randint(low = 0, high = 3)
	return labels[random_integer]
