Question: Let s consider the pulley system placed on a rough incline. The system is initially stationary, and an external force P = P Ey is

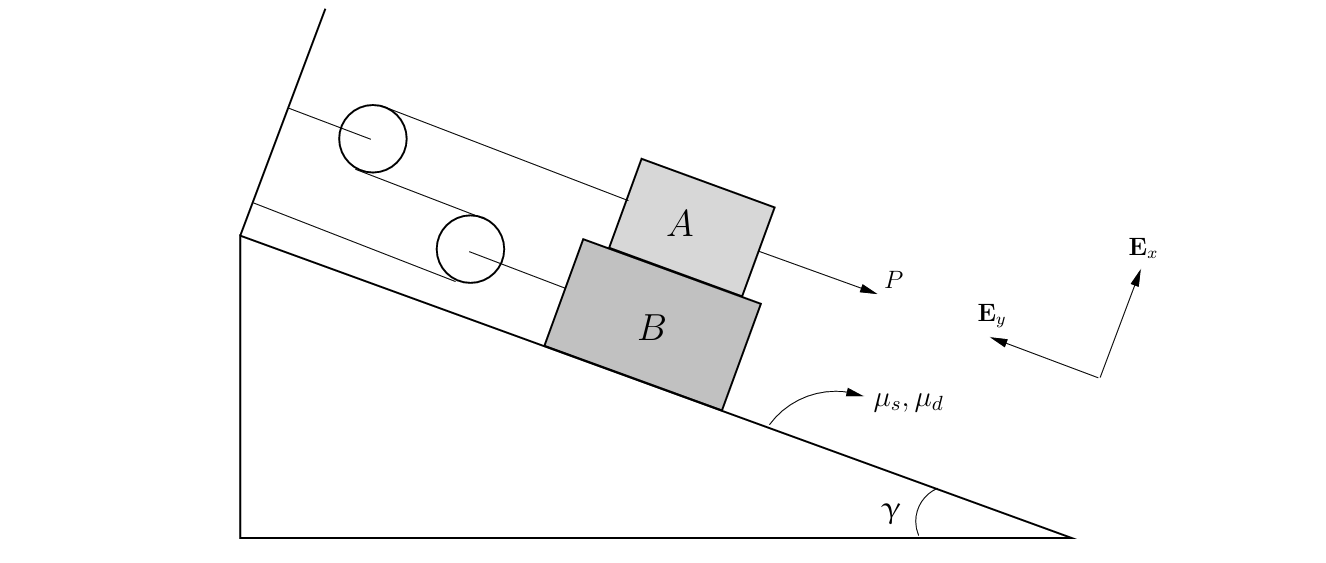

Lets consider the pulley system placed on a rough incline. The system is initially stationary, and an external force P =P Ey is applied. The Block A has a mass of mA, the Block B has a mass of mB, and the pulleys are massless. The terms s and d are the coefficients of static and dynamic friction, respectively. Neglect the friction between the two blocks. A B P s,d Ex Ey (a) Starting with the position vectors, rA = yAEy and rB = yBEy +c, define the kinematics of the problem (c is a constant vector from A to B). Show the kinematical relationships between Block A and Block B (by analyzing the pulley system).(b) For each block, provide a free body diagram. Be careful with the gravitational force and provide a clear expression for the friction force. (c) Derive the equations of motion for each block. (d) Find the critical external force P to move Block A. Provide your answer as a function of mA, mB, g, , and s.
