Question: Let the alphabet be { 0 , 1 } . Consider the following regular expression: ( 0 ( 0 + 1 ) ^ ( *

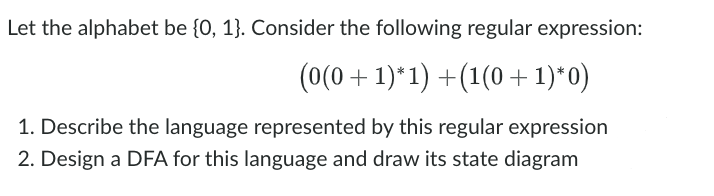

Let the alphabet be {0,1}. Consider the following regular expression:
(0(0+1)^(*)1)+(1(0+1)^(*)0)
Describe the language represented by this regular expression
Design a DFA for this language and draw its state diagram
