Question: Let x ( t ) is a low - pass bandlimited signal with maximum frequency 1 0 Hz . Assume that the spectrum of x

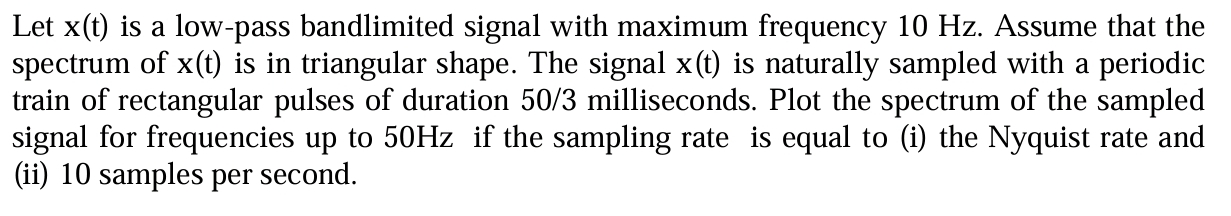

Let x(t) is a low-pass bandlimited signal with maximum frequency 10 Hz . Assume that the spectrum of x(t) is in triangular shape. The signal x(t) is naturally sampled with a periodic train of rectangular pulses of duration 50/3 milliseconds. Plot the spectrum of the sampled signal for frequencies up to 50 Hz if the sampling rate is equal to (i) the Nyquist rate and (ii)10 samples per second.
Let x ( t ) is a low - pass bandlimited signal
