Question: Link A B has the angular velocity A B = 4 r a d s and angular acceleration A B = 9 r a d

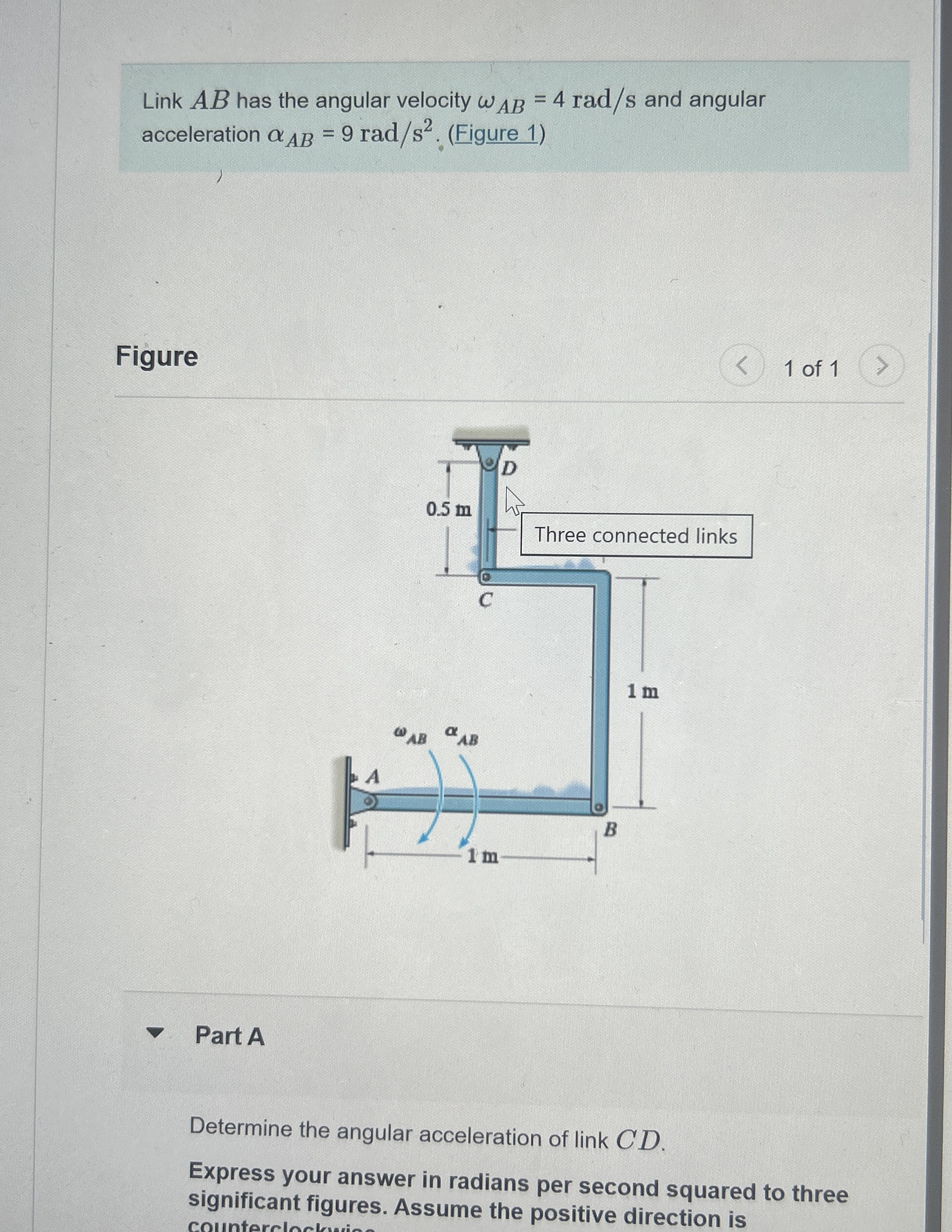

Link AB has the angular velocity AB=4rads and angular acceleration AB=9rads2 :(Figure 1)
Figure
1 of 1
Part A
Determine the angular acceleration of link CD.
Express your answer in radians per second squared to three significant figures. Assume the positive direction is
Link A B has the angular velocity A B = 4 r a d s

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
