Question: Link A B , of width b = 2 i n . and thickness t = 1 4 i n . , is used to

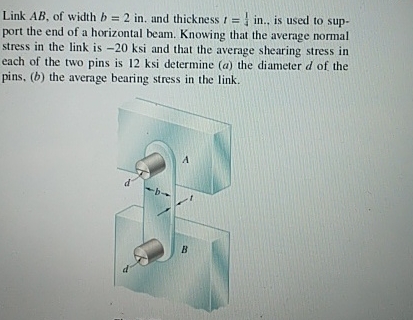

Link AB, of width b=2in. and thickness t=14in., is used to support the end of a horizontal beam. Knowing that the average normal stress in the link is -20 ksi and that the average shearing stress in each of the two pins is 12 ksi determine
a) Consider link AB, the bearing stress on the link at Pin-A is ______ psi?
b) Consider Pin-A, the bearing stress on the pin is ______ psi?
