Question: Link Layer ( and network layer ) addressing and forwarding - 2 . Consider again the figure above. The IP and MAC addresses are shown

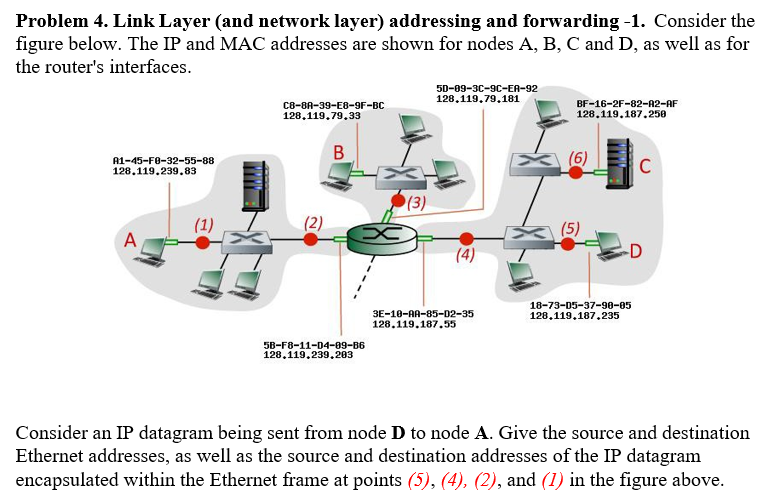

Link Layer (and network layer) addressing and forwarding -2. Consider again the figure above. The IP and MAC addresses are shown for nodes A, B, C and D, as well as for the router's interfaces. Now suppose that the router in the above diagram is replaced by a switch. Consider again an IP datagram being sent from node D to node A. Give again the source and destination Ethernet addresses, as well as the source and destination addresses of the IP datagram encapsulated within the Ethernet frame at points (5),(4),(2), and
(1) in the figure above for the case that the router has been replaced by a Ethernet switch.Consider an IP datagram being sent from node D to node A. Give the source and destination
Ethernet addresses, as well as the source and destination addresses of the IP datagram
encapsulated within the Ethernet frame at points (5),(4),(2), and (1) in the figure above.
Link Layer ( and network layer ) addressing and
