Question: Live load = 4 0 psf Dead load: ( 1 ) Slab = 5 0 p s f , ( 2 ) Deck = 6

Live load =40 psf
Dead load: (1) Slab =50psf,(2) Deck =6*psf,(3) Mechanical equipment =5*psf,(4) Suspended ceiling =8psf,(5) Beam =25lbft,
(6) Girder =35lbft
Beam and Girder spacing: : (1)L1=16ft,(2)L2=12ft,(3)L3=8ft
Please round to the nearest one.
Reaction force for Beam B-1(one side only)=
lb
Reaction force for Beam B-2(one side only)=
lb
Reaction force for Beam B-3(open side)=
lb
Reaction force for Beam B-3(Girder G-1 side)=
lb

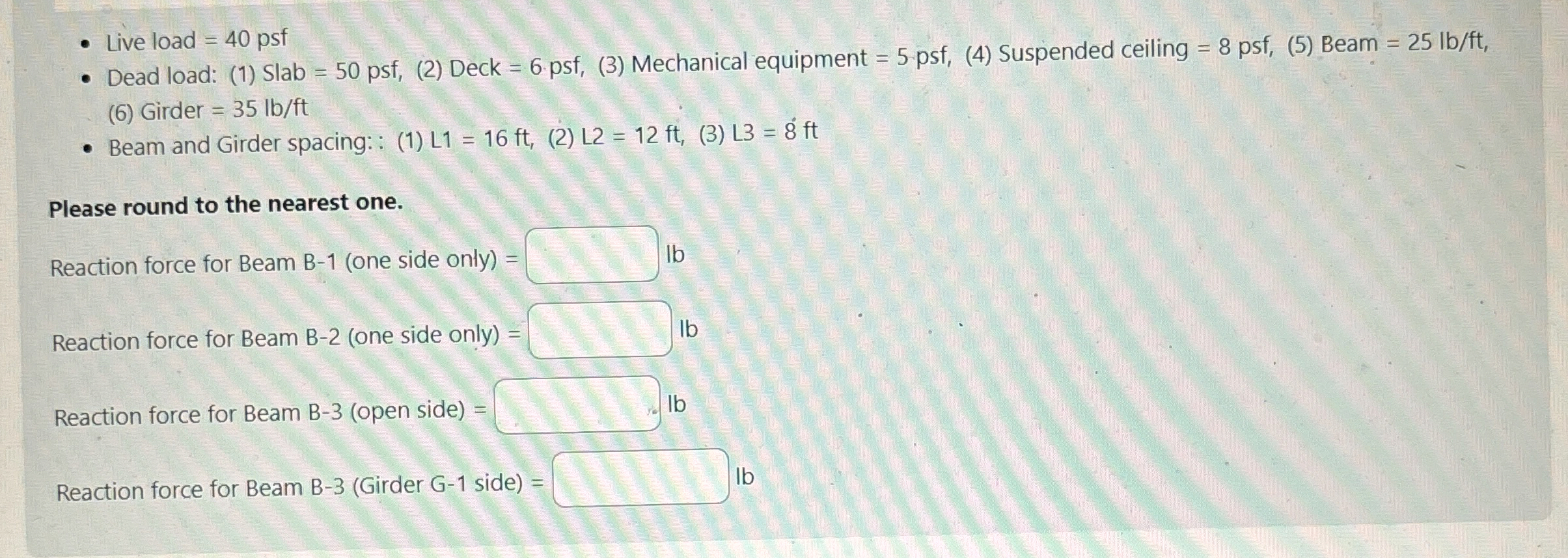

Live load = 4 0 psf Dead load: ( 1 ) Slab = 5 0 p
