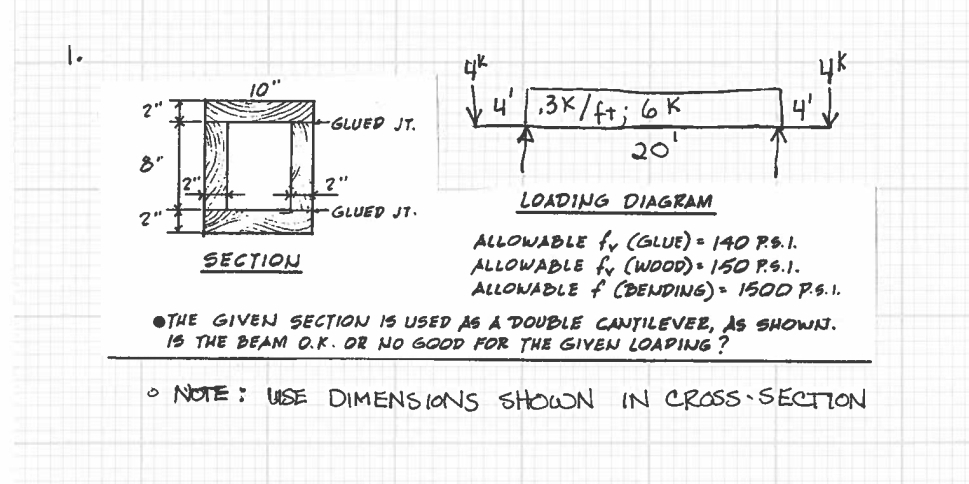

LOADING DIAGRAM

ALLOWABLE fr $($GLUE$)=140$ P$\mathrm{.}5\mathrm{.}1.$

ALLOWABLE $f_V(\frac{W}{O}OD)=150$ P$\mathrm{.}5\mathrm{.}1.$

ALLONABLE $f($BENDING$)=1500$ P$\mathrm{.}5\mathrm{.}1.$

TUE GIVEN SECTION IS USEd AS A DOUbLE CNUTILEVER, AS SHOWN. IS THE BEAM O$.$K$.$ OR NO GOOD FOR THE GIVEN LOADING?

NOTE: USE DIMENSIONS SHOWN IN CROSS$-$SECTION
