Question: Locate the centroid ( x , b a r ( y ) ) of the metal cross section. Neglect the thickness of the material and

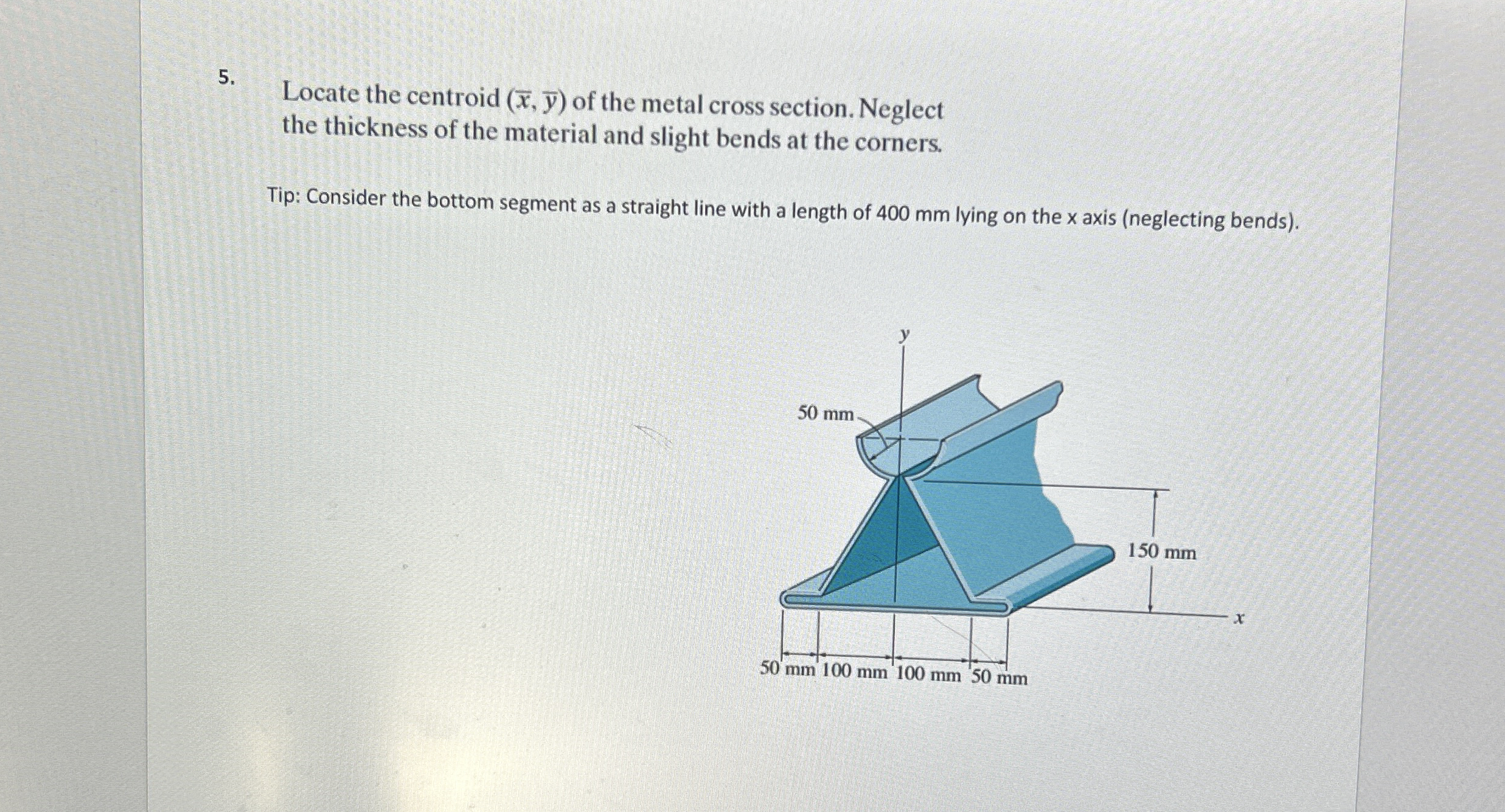

Locate the centroid (x,bar(y)) of the metal cross section. Neglect the thickness of the material and slight bends at the corners.
Tip: Consider the bottom segment as a straight line with a length of 400 mm lying on the x axis (neglecting bends).
Locate the centroid ( x , b a r ( y ) ) of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Locate the centroid (x, ) of the metal cross section. Neglect the thickness of the material and slight bends at the corners. 50 mm. 50' mm 100 mm 100 mm 50 mm 150 mm X

Q:

Consider the sheet metal cross section shown in ( Figure 1 ) . Suppose that r = 1 . 2 i n , a = 2 . 2 i n . , and b = 6 . 4 in . Figure Part A Determine the location ( x , b a r ( y ) ) of the...

Q:

Consider the sheet metal cross section shown in ( Figure 1 ) . Suppose that r = 1 . 8 in . , a = 2 . 8 in . , and b = 7 . 6 in . Determine the location ( X , Y ) of the centroid of the sheet metal...

Q:

Determine the location (x, y) of the centroid of the sheet metal cross section. Neglect the thickness of the material and slight bends at the corners. y + 2 in. 8 in. -3 in.3 in. X

Q:

Determine the location (x, ) of the centroid of the sheet metal cross section. Neglect the thickness of the material and slight bends at the corners. y 2 in. 8 in. -3 in.3 in. X

Q:

Locate the centroid (x,y) of the metal cross section.Neglect the thickness of the material and slight bends at the corners. 50 mm 150 mm 50 mm 100 mm 100 mm 50 mm

Q:

Problem 9.52 Figure 1 of 1 1 in.1 in. 5 in.- 4 -5 in.-- 3 in. + 8 in. X Part A Locate the centroid for the wire. Neglect the thickness of the material and slight bends at the corners. (Figure 1)...

Q:

Consider the "roll - formed" member shown in ( Figure 1 ) . Suppose that a = 4 2 mm , b = 1 6 0 mm . Figure 1 of 1 A bent member consisting of five straight segments is shown in the x y plane. The x...

Q:

Locate the centroid for the wire. Neglect the thickness of the material and slight bends at the corners. ( ANS: ( 0 , 5 . 1 4 ) in . )

Q:

Locate the centroid for the wire. Neglect the thickness of the material and slight bends at the corners. ( ANS: ( 7 7 . 2 , 3 1 . 7 1 m m )
