Question: Locating Design the proper locating method for the part below. o Be sure to list any locators used and explain why you have made your

Locating

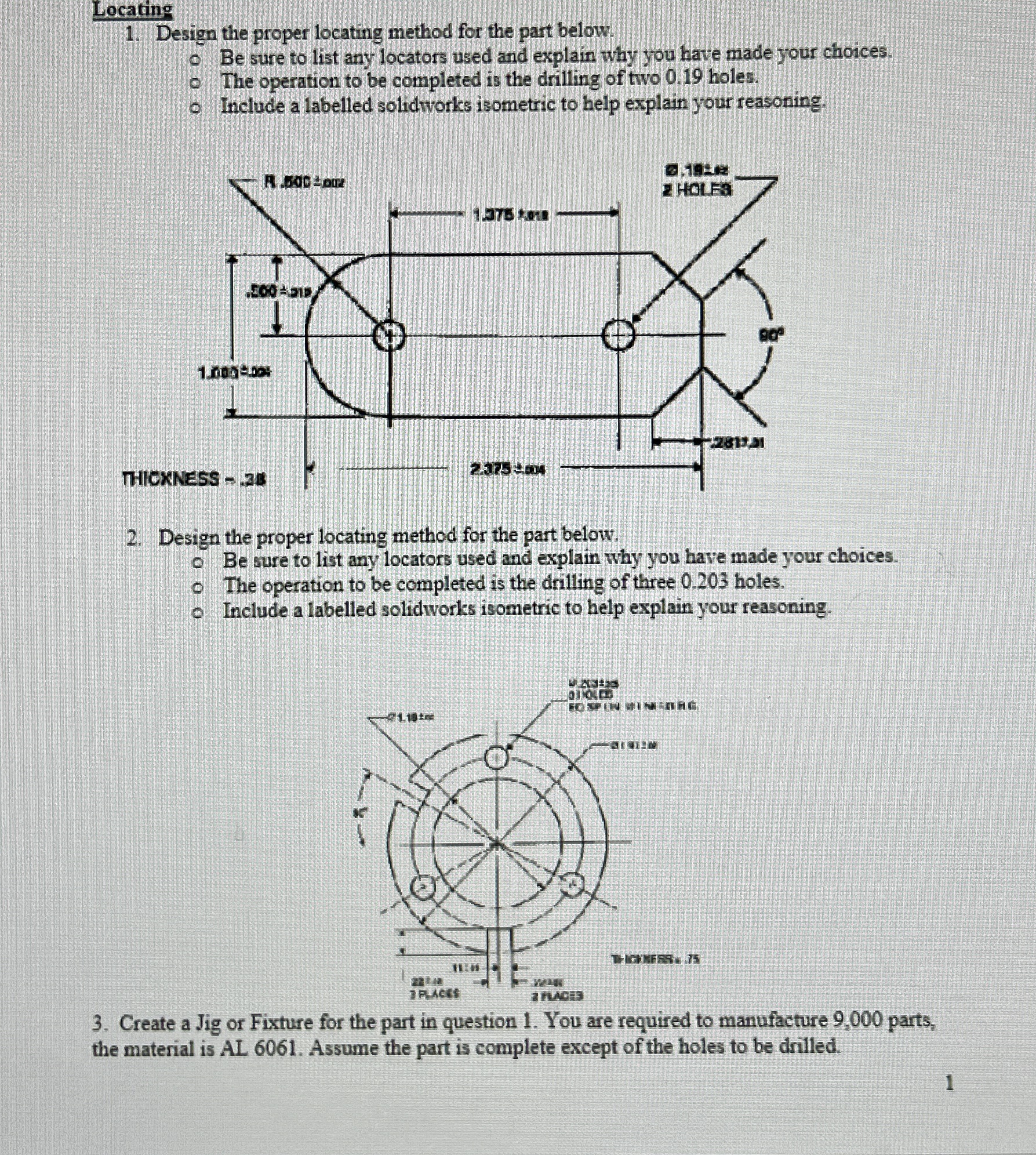

Design the proper locating method for the part below.
o Be sure to list any locators used and explain why you have made your choices.
The operation to be completed is the drilling of two 0.19 holes.
Include a labelled solidworks isometric to help explain your reasoning.
Design the proper locating method for the part below.
o Be sure to list any locators used and explain why you have made your choices.
0 The operation to be completed is the drilling of three 0.203 holes.
Include a labelled solidworks isometric to help explain your reasoning.
Create a Jig or Fixture for the part in question 1. You are required to manufacture 9,000 parts, the material is AL 6061. Assume the part is complete except of the holes to be drilled.
Locating Design the proper locating method for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
