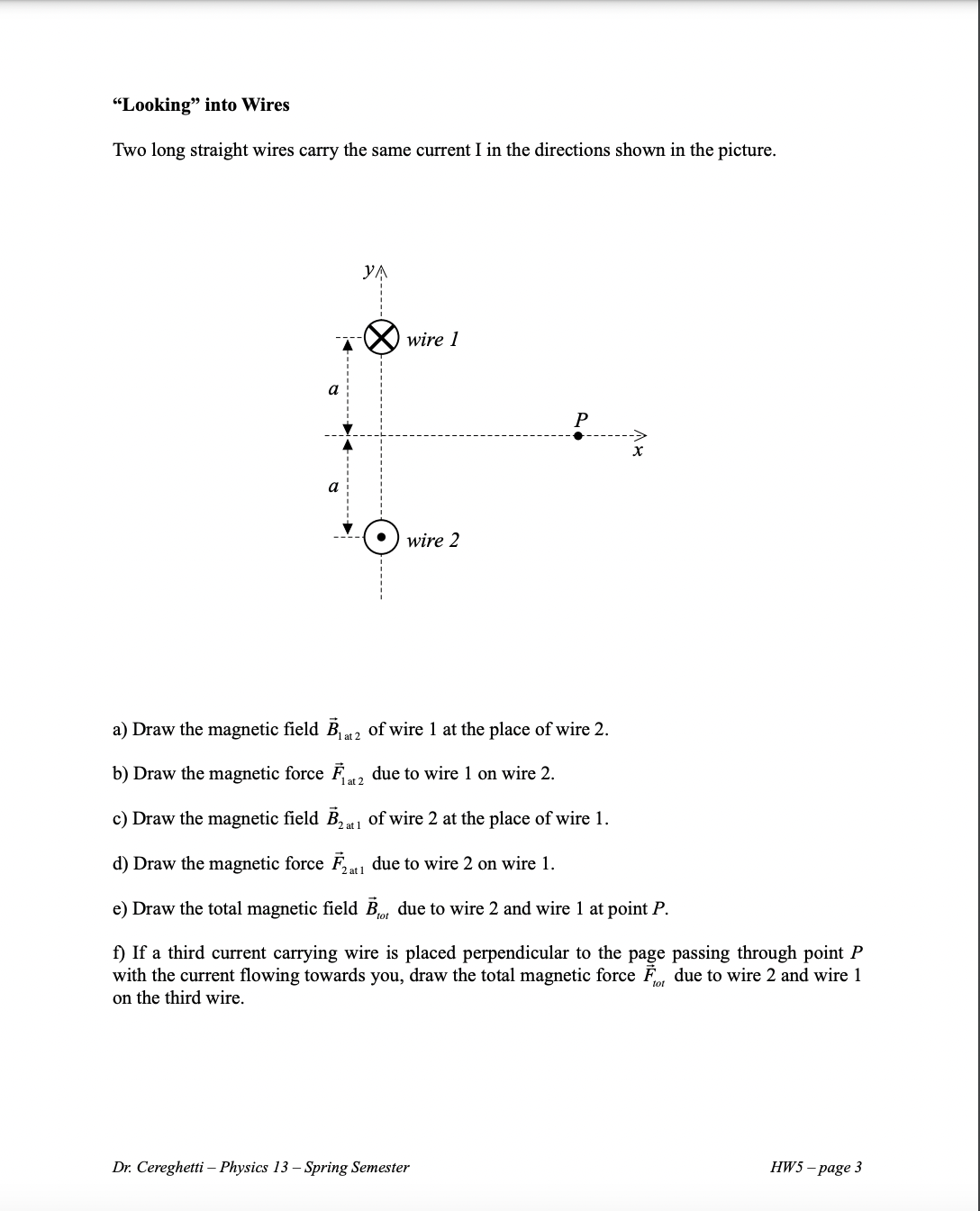

"Looking" into Wires Two long straight wires carry the same current I in the directions shown in the picture. YA wire 1 Q X . wire 2 a) Draw the magnetic field Bar2 of wire 1 at the place of wire 2. b) Draw the magnetic force Far2 due to wire 1 on wire 2. c) Draw the magnetic field Bzari of wire 2 at the place of wire 1. d) Draw the magnetic force F2at due to wire 2 on wire 1. e) Draw the total magnetic field Bor due to wire 2 and wire 1 at point P. f) If a third current carrying wire is placed perpendicular to the page passing through point P with the current flowing towards you, draw the total magnetic force F, due to wire 2 and wire 1 on the third wire. Dr. Cereghetti - Physics 13 - Spring Semester HW5 -page 3
