Question: M b k k m y b Figure 1 Figure 2 2. (25 points) The system shown in Figure 2 has m = 10

M b k k m y b Figure 1 Figure 2 2.

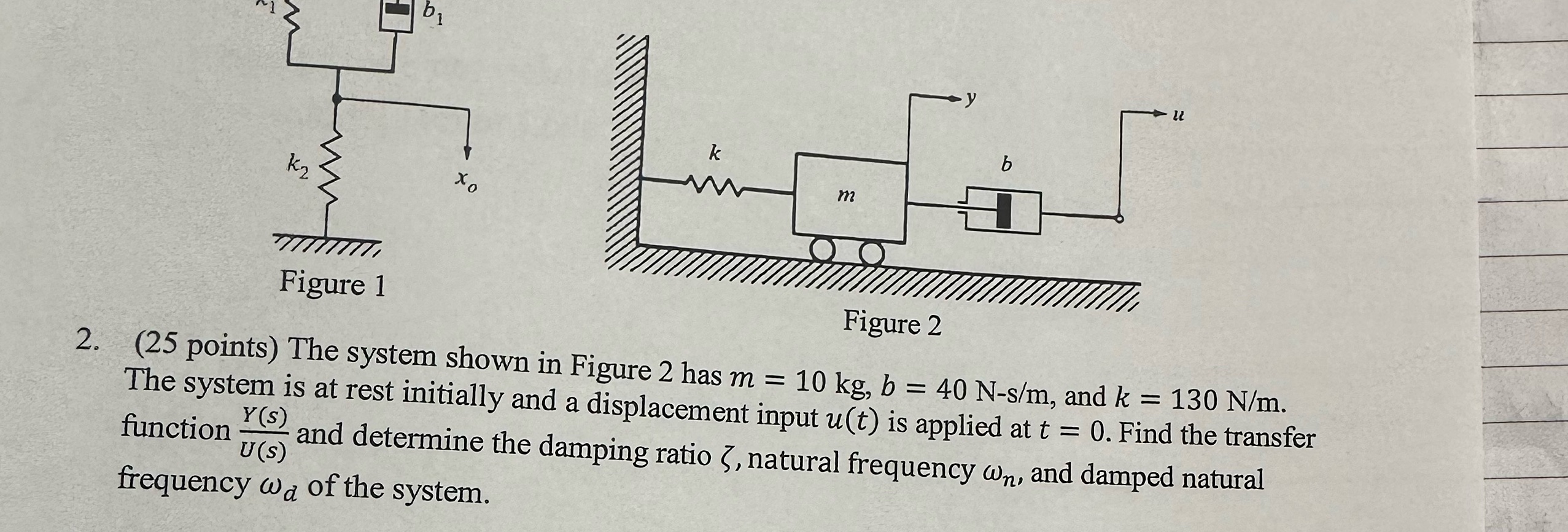

M b k k m y b Figure 1 Figure 2 2. (25 points) The system shown in Figure 2 has m = 10 kg, b = 40 N-s/m, and k = 130 N/m. The system is at rest initially and a displacement input u(t) is applied at t = 0. Find the transfer function Y(s) and determine the damping ratio 3, natural frequency wn, and damped natural U(s) frequency wa of the system.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
