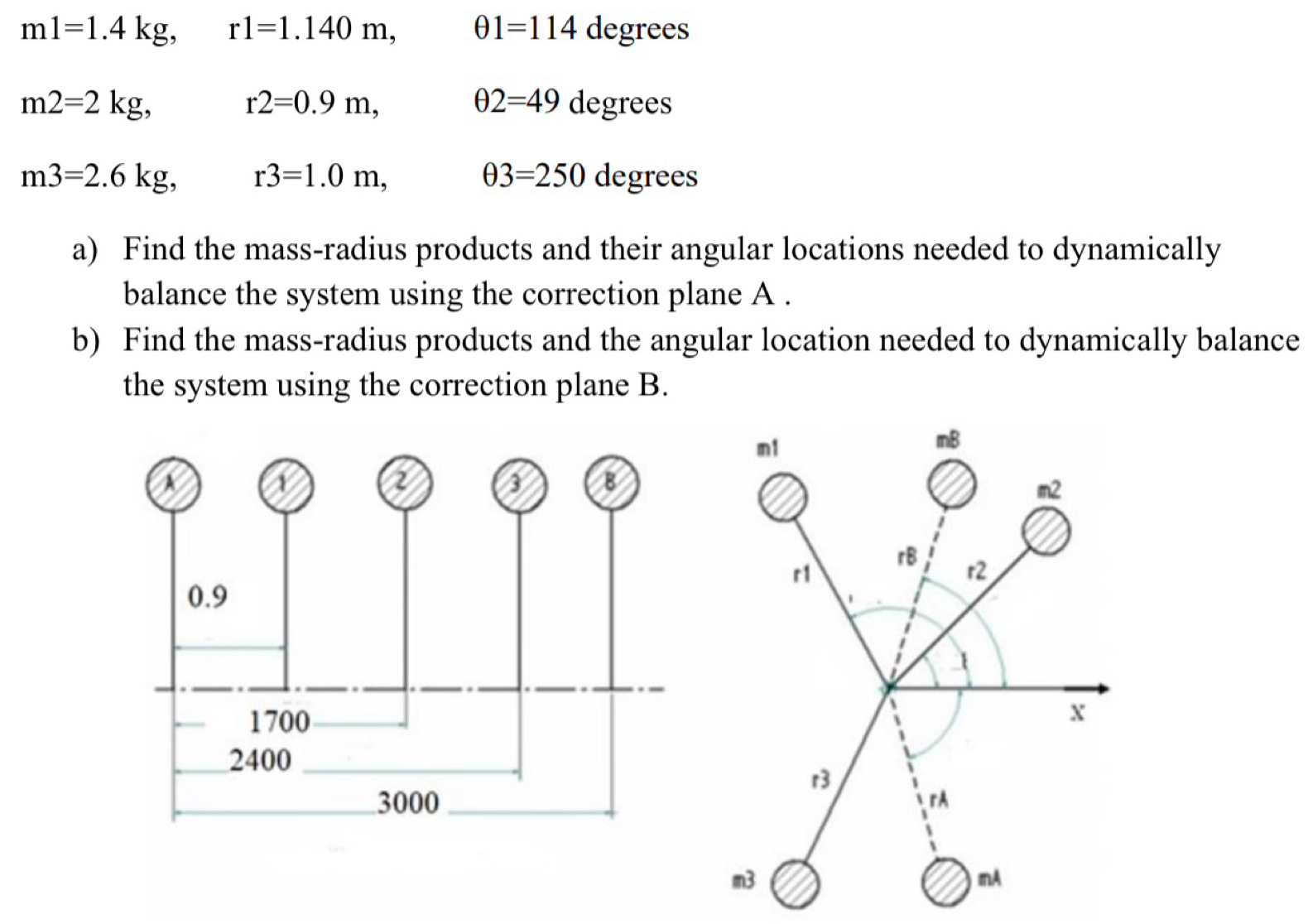

Question: m l = 1 . 4 k g , r l = 1 . 1 4 0 m , 1 = 1 1 4 degrees

ml=1.4kg,rl=1.140m,1=114 degrees
m2=2kg,r2=0.9m,2=49 degrees
m3=2.6kg,r3=1.0m,3=250 degrees
a) Find the mass-radius products and their angular locations needed to dynamically balance the system using the correction plane A .
b) Find the mass-radius products and the angular location needed to dynamically balance the system using the correction plane B.
m l = 1 . 4 k g , r l = 1 . 1 4 0 m , 1 = 1 1 4
