Make it clear and concise

Question $1(30)$

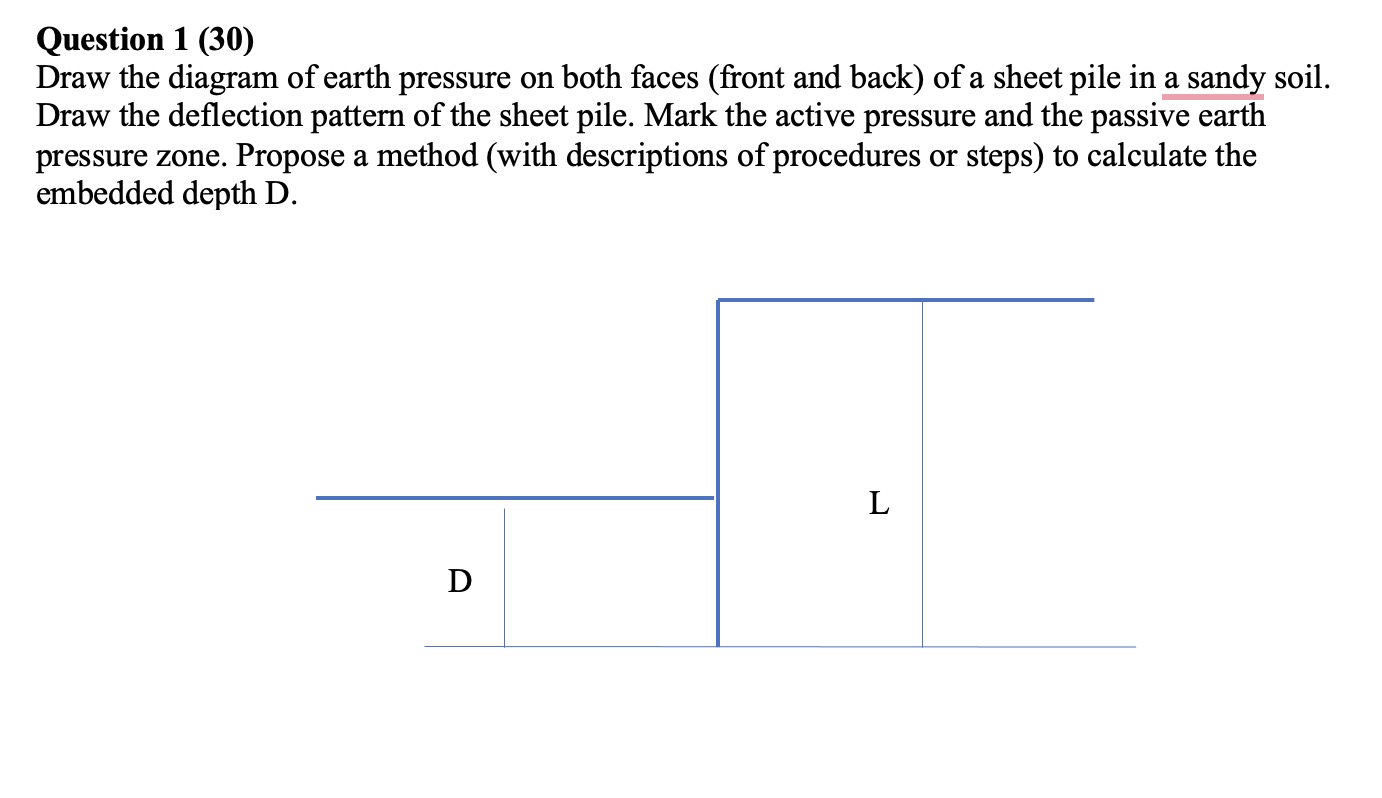

Draw the diagram of earth pressure on both faces $($front and back$)$ of a sheet pile in a sandy soil.

Draw the deflection pattern of the sheet pile. Mark the active pressure and the passive earth

pressure zone. Propose a method $($with descriptions of procedures or steps$)$ to calculate the

embedded depth D$.$
