Question: (manufacturing process) please solve this question by a computer not hand handwriting Turning is performed on a work material with shear strength of 250 MPa.

(manufacturing process)

please solve this question by a computer not hand handwriting Turning is performed on a work material with shear strength of 250

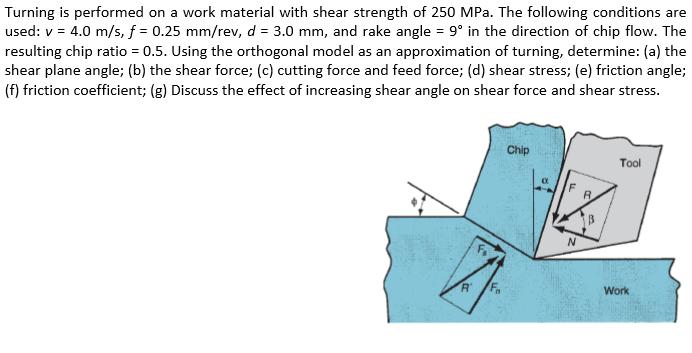

Turning is performed on a work material with shear strength of 250 MPa. The following conditions are used: v = 4.0 m/s, f = 0.25 mm/rev, d = 3.0 mm, and rake angle = 9 in the direction of chip flow. The resulting chip ratio = 0.5. Using the orthogonal model as an approximation of turning, determine: (a) the shear plane angle; (b) the shear force; (c) cutting force and feed force; (d) shear stress; (e) friction angle; (f) friction coefficient; (g) Discuss the effect of increasing shear angle on shear force and shear stress. Chip Tool R. N Work

Step by Step Solution

★★★★★

3.42 Rating (152 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To solve the problem using the orthogonal cutting model follow these steps Given Data Cutting speed ... View full answer
