Question: Match the circuit condition with its approximation. you may use answers more than once or not at all. Inductor with a high frequency A C

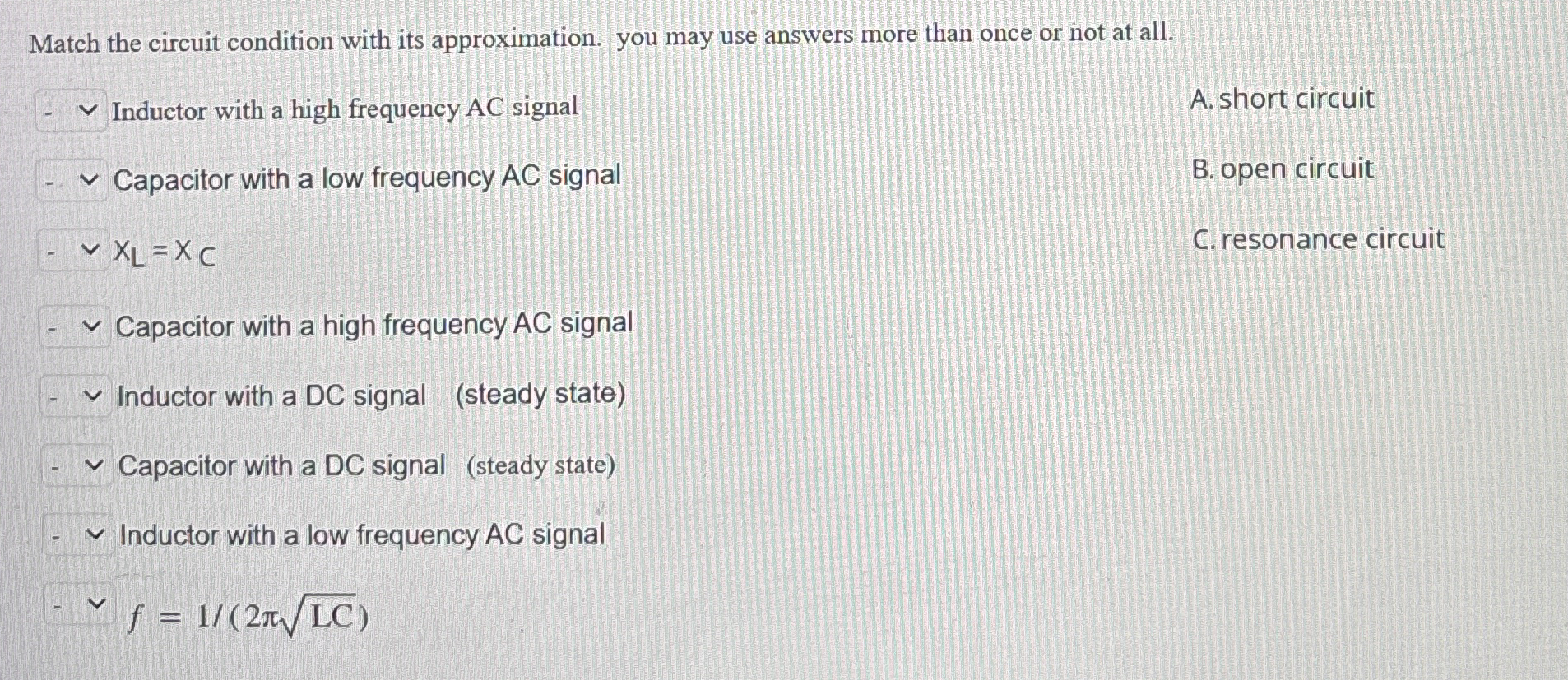

Match the circuit condition with its approximation. you may use answers more than once or not at all.
Inductor with a high frequency AC signal
A. short circuit
Capacitor with a low frequency AC signal
xL=xC
B. open circuit
Capacitor with a high frequency AC signal
Inductor with a DC signal (steady state)
Capacitor with a DC signal (steady state)
Inductor with a low frequency AC signal
f=12L2C
Match the circuit condition with its
