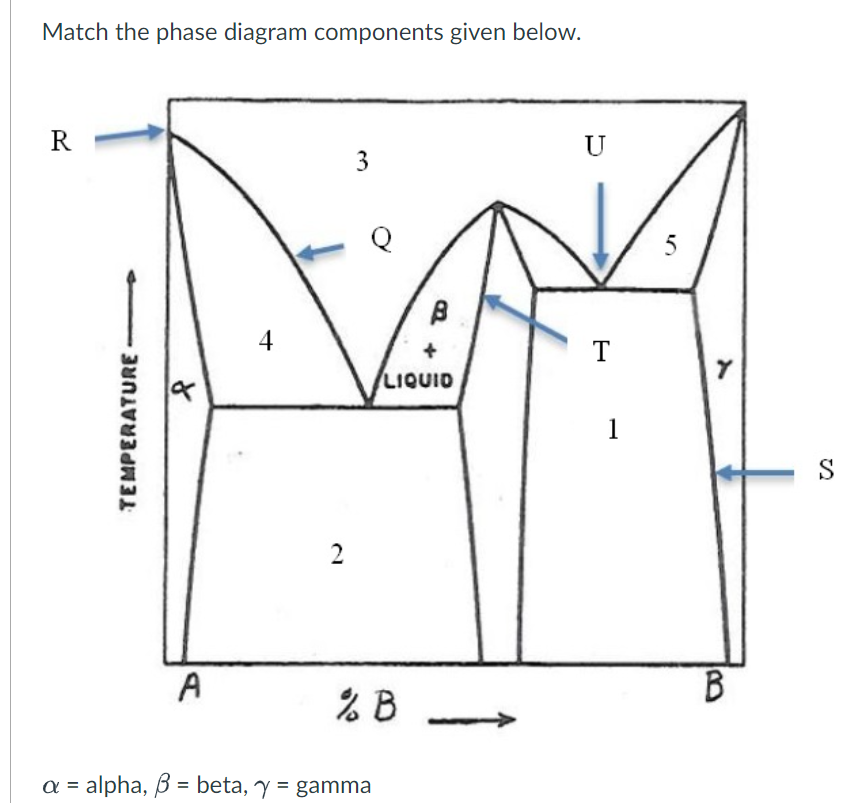

Question: Match the phase diagram components given below. R U 3 5 B 4 T LIQUID TEMPERATURE 1 S 2 B %B a = alpha, B

Match the phase diagram components given below. R U 3 5 B 4 T LIQUID TEMPERATURE 1 S 2 B %B a = alpha, B = beta, y = gamma = region 4 region 5

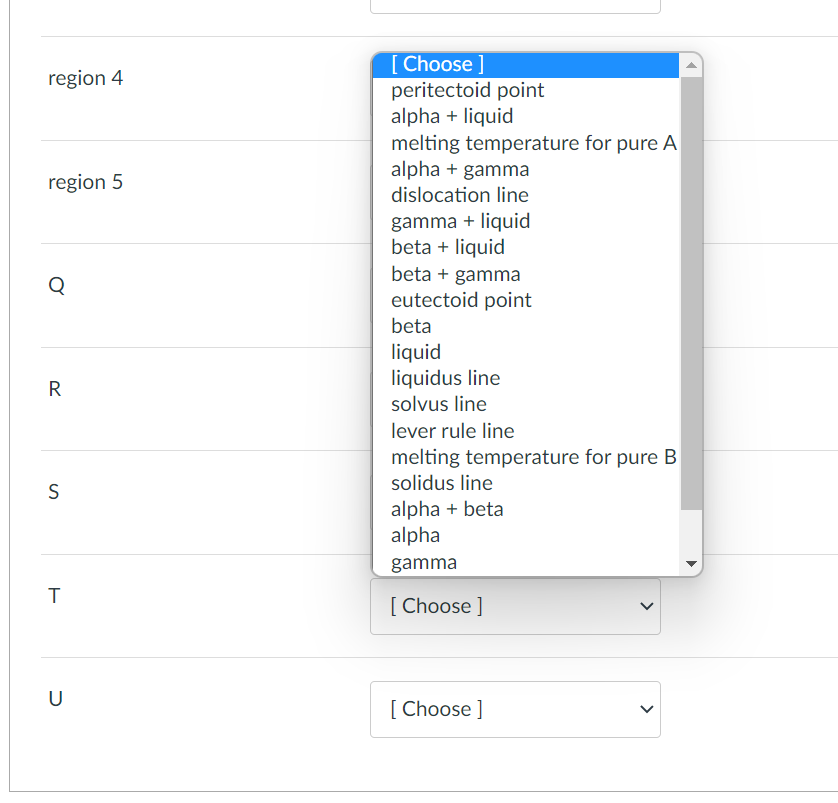

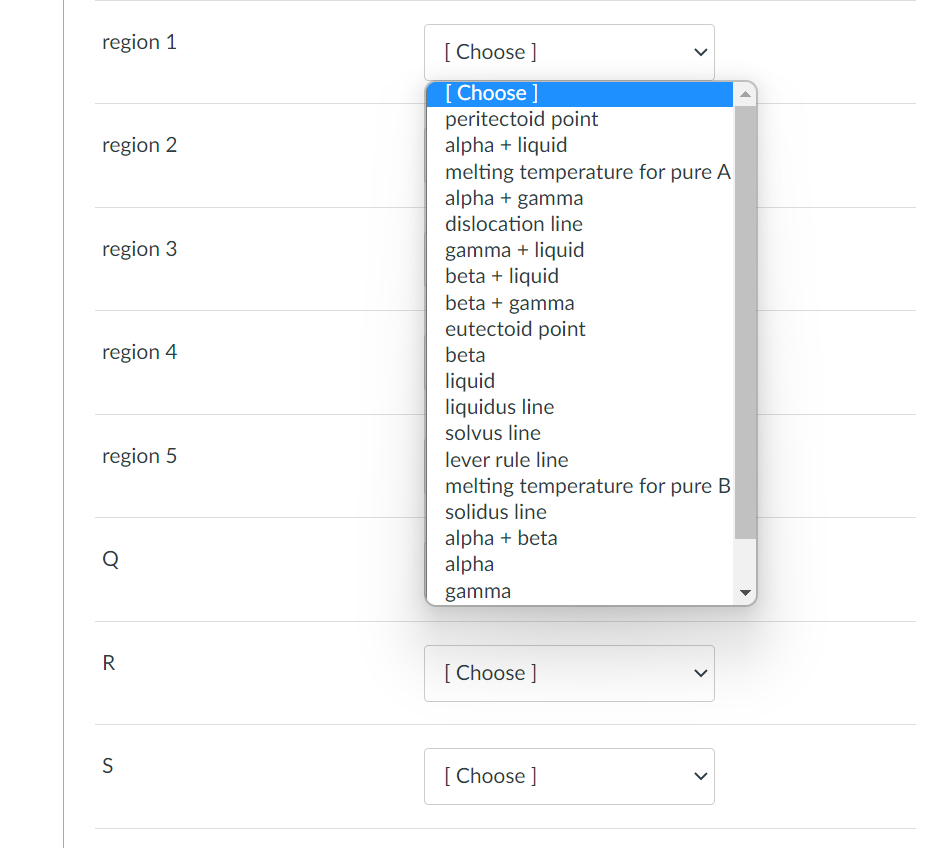

Match the phase diagram components given below. R U 3 5 B 4 T LIQUID TEMPERATURE 1 S 2 B %B a = alpha, B = beta, y = gamma = region 4 region 5 Q [ Choose ] peritectoid point alpha + liquid melting temperature for pure A alpha + gamma dislocation line gamma + liquid beta + liquid beta + gamma eutectoid point beta liquid liquidus line solvus line lever rule line melting temperature for pure B solidus line alpha + beta alpha gamma R S T [ Choose] region 1 > region 2 region 3 [Choose ] [Choose ] peritectoid point alpha + liquid melting temperature for pure A alpha + gamma dislocation line gamma + liquid beta + liquid beta + gamma eutectoid point beta liquid liquidus line solvus line lever rule line melting temperature for pure B solidus line alpha + beta alpha gamma region 4 region 5 Q R [ Choose ] > S [Choose ] >

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
