Question: Matlab 2015a programming. I need coding and output. A, b The temperature profile of plug flow reactor can be approximated by the following equation T

Matlab 2015a programming. I need coding and output. A, b The

Matlab 2015a programming. I need coding and output. A, b

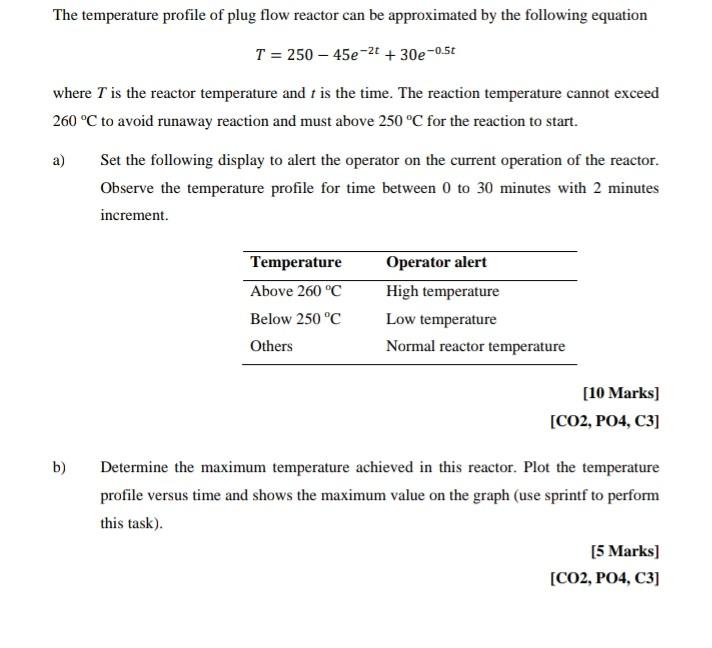

The temperature profile of plug flow reactor can be approximated by the following equation T = 250 - 45e-2t + 30e -0.5t where T is the reactor temperature and t is the time. The reaction temperature cannot exceed 260 C to avoid runaway reaction and must above 250 C for the reaction to start. a) Set the following display to alert the operator on the current operation of the reactor. Observe the temperature profile for time between 0 to 30 minutes with 2 minutes increment. Temperature Above 260 C Below 250 C Others Operator alert High temperature Low temperature Normal reactor temperature [10 Marks] [CO2, PO4, C3] b) Determine the maximum temperature achieved in this reactor. Plot the temperature profile versus time and shows the maximum value on the graph (use sprintf to perform this task). [5 Marks) (CO2, PO4, C3]
