Question: ( Maximum 1 0 points ) Consider the fixed - fixed beam A B of length L shown in figure 1 . A load P

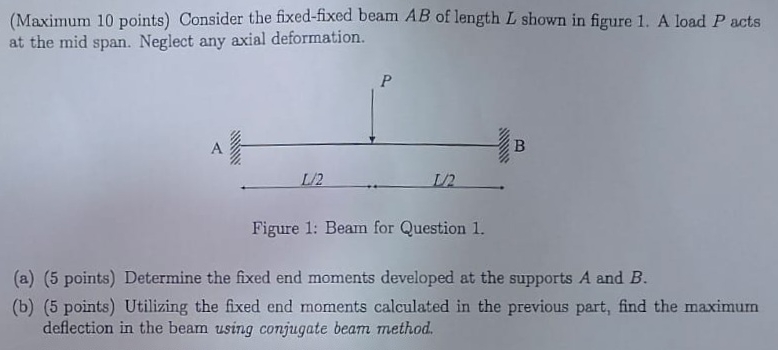

(Maximum 10 points) Consider the fixed-fixed beam AB of length L shown in figure 1. A load P acts at the mid span. Neglect any axial deformation.
Figure 1: Beam for Question 1.
(a)(5 points) Determine the fixed end moments developed at the supports A and B.
(b)(5 points) Utilizing the fixed end moments calculated in the previous part, find the maximum deflection in the beam using conjugate beam method.
( Maximum 1 0 points ) Consider the fixed - fixed
