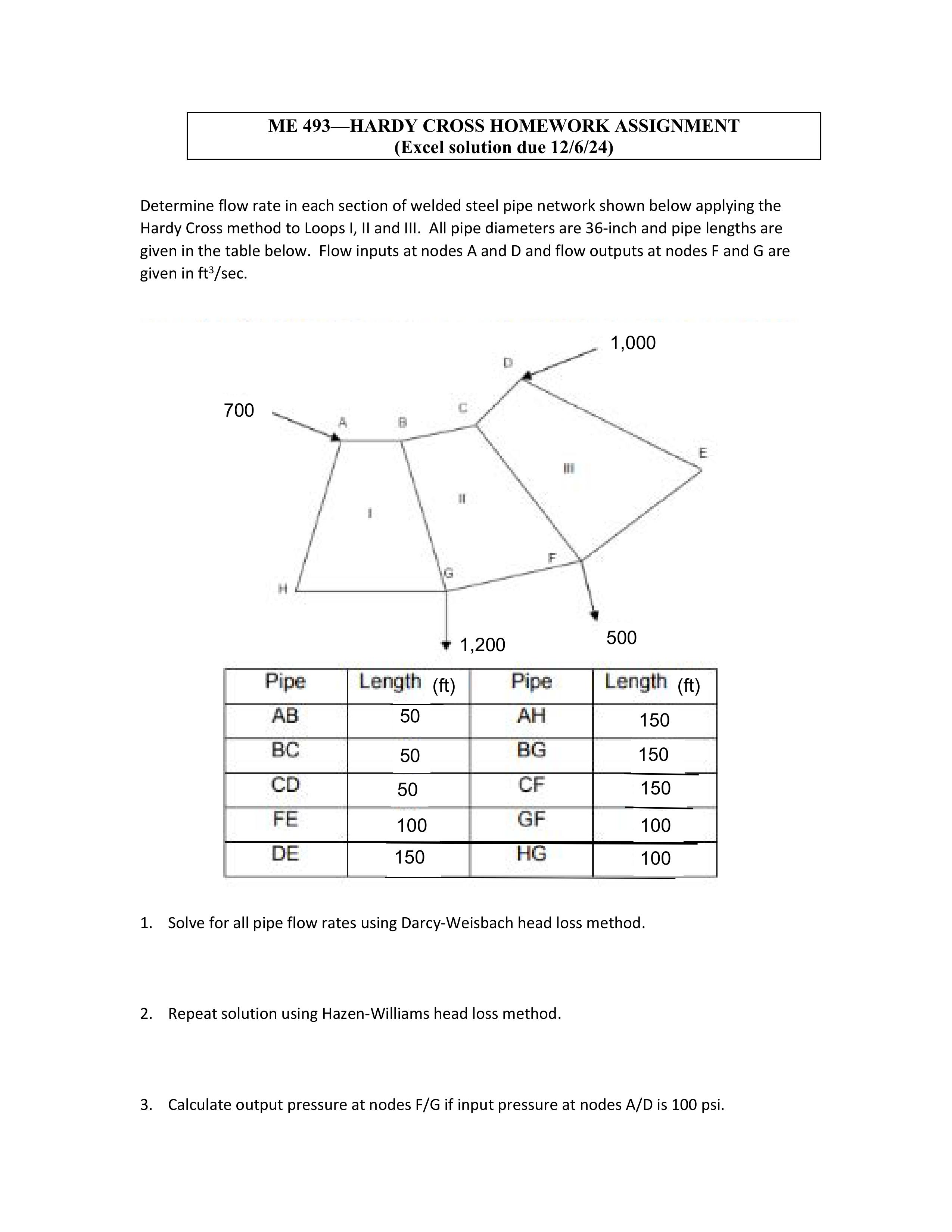

ME $493-$HARDY CROSS HOMEWORK ASSIGNMENT

$($Excel solution due $12/6/24)$

Determine flow rate in each section of welded steel pipe network shown below applying the

Hardy Cross method to Loops I, II and III. All pipe diameters are $36-$inch and pipe lengths are

given in the table below. Flow inputs at nodes A and D and flow outputs at nodes F and G are

given in ft$^(3)//$sec$.$

Solve for all pipe flow rates using Darcy$-$Weisbach head loss method.

Repeat solution using Hazen$-$Williams head loss method.

Calculate output pressure at nodes F$/$G if input pressure at nodes A$/$D is $100$ psi $.$
