Mealy Machine:

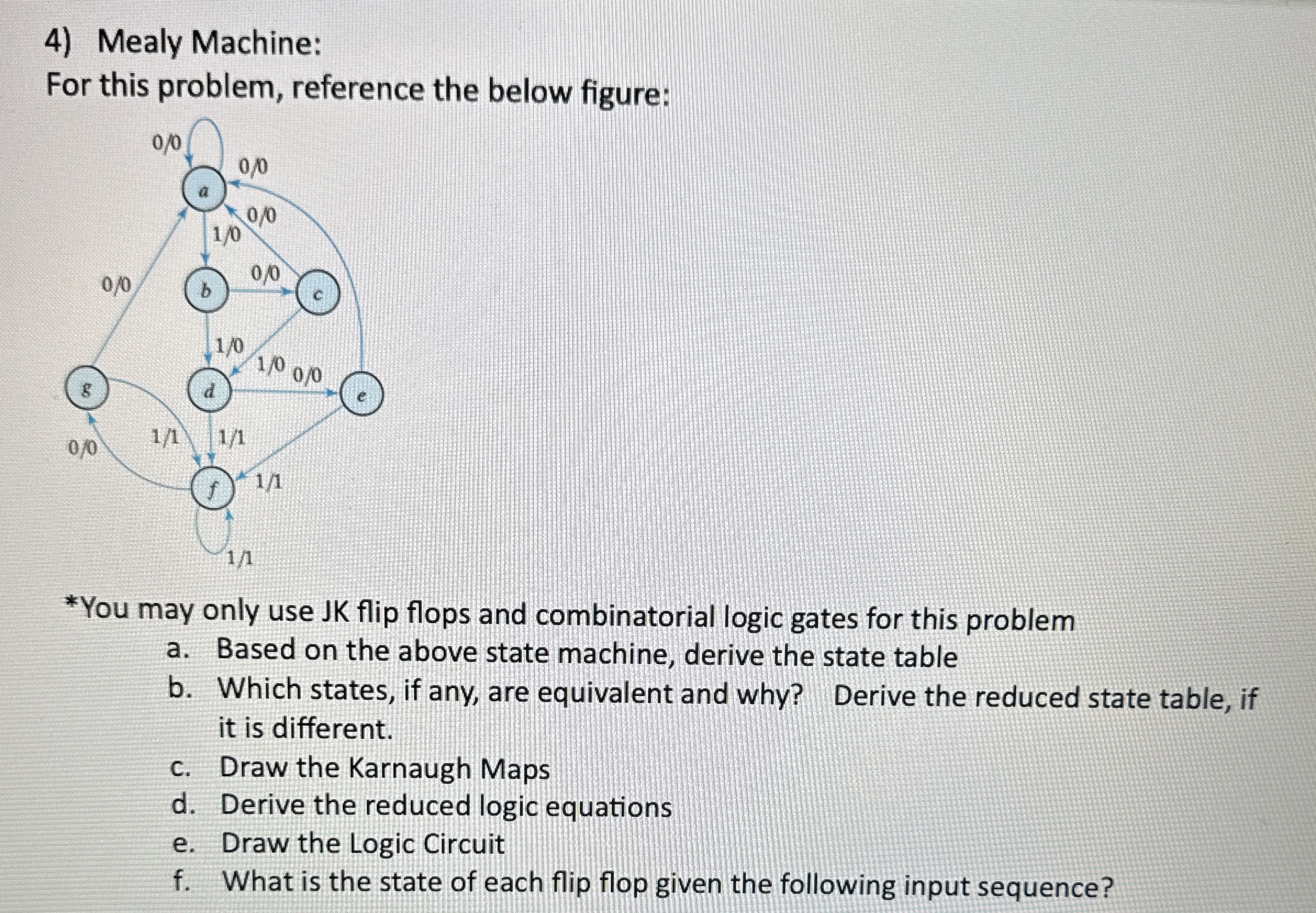

For this problem, reference the below figure:

$*$You may only use JK flip flops and combinatorial logic gates for this problem

a$.$ Based on the above state machine, derive the state table

b$.$ Which states, if any, are equivalent and why? Derive the reduced state table, if it is different.

c$.$ Draw the Karnaugh Maps

d$.$ Derive the reduced logic equations

e$.$ Draw the Logic Circuit

f$.$ What is the state of each flip flop given the following input sequence?

Show all work
