Question: Mechanical Engineering Statics For the structure shown in Fig 1 , 1 ) Find reactions at support A and B ( need to show FBD

Mechanical Engineering Statics

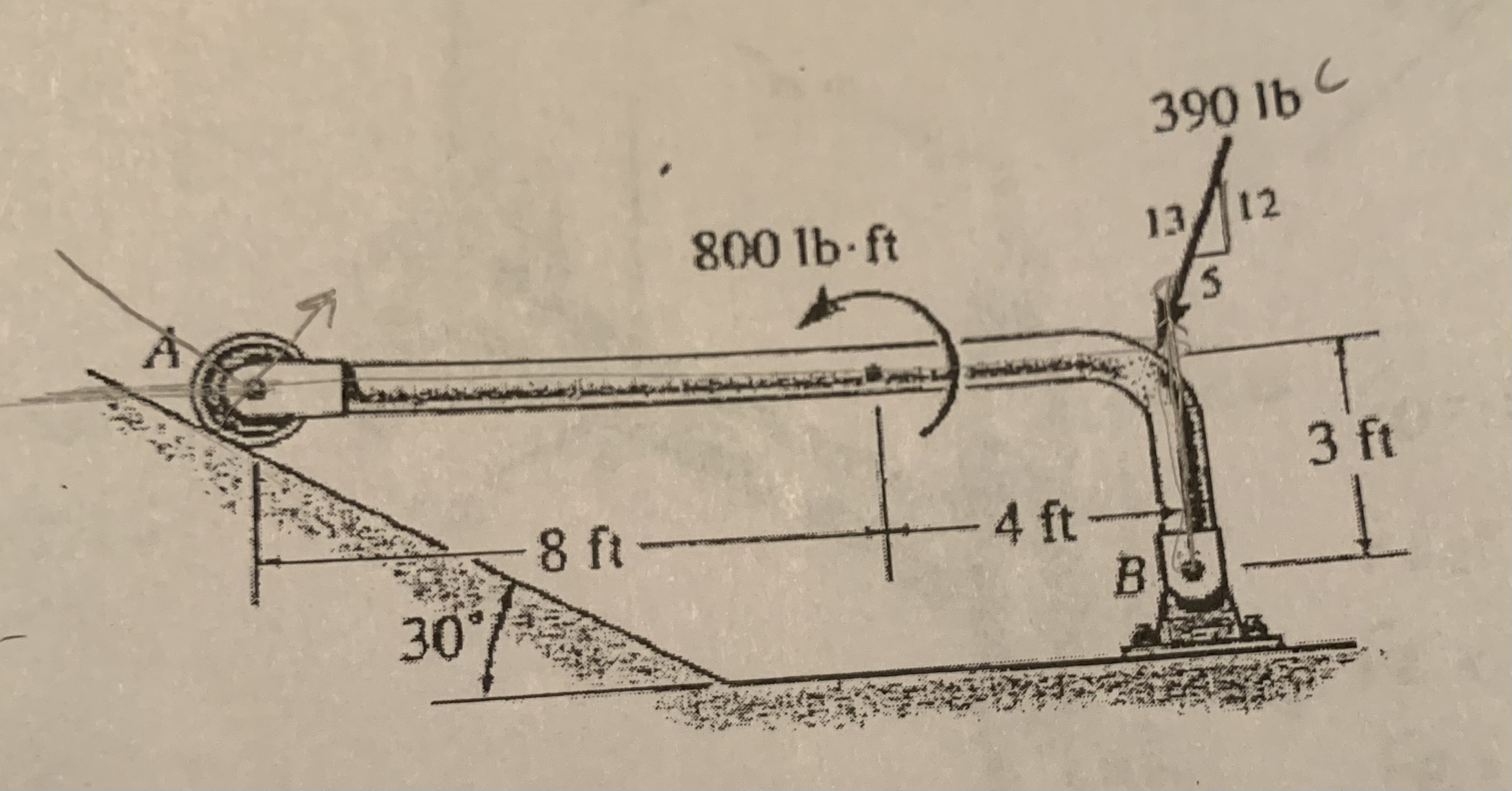

For the structure shown in Fig 1,
1) Find reactions at support A and B (need to show FBD)
2) If the couple moment is reversed, but still 800 lb-ft, will the beam be lifted from location A?(Need to show the detail calculations).
3) What is the maximum magnitude of the reversed couple moment without causing to lift the beam from A.
