Question: MICROPROCESSOR Design and write a program using Assemble language only on AVR Simulator IDE (Microchip Studio) which will display the sequence of number (1,2,3,4) on

 MICROPROCESSOR Design and write a program using Assemble language only on

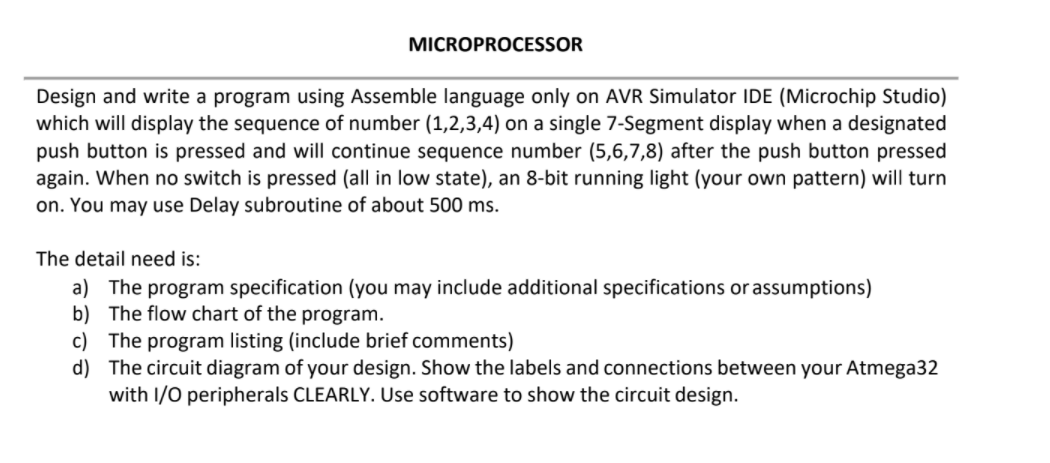

MICROPROCESSOR Design and write a program using Assemble language only on AVR Simulator IDE (Microchip Studio) which will display the sequence of number (1,2,3,4) on a single 7-Segment display when a designated push button is pressed and will continue sequence number (5,6,7,8) after the push button pressed again. When no switch is pressed (all in low state), an 8-bit running light (your own pattern) will turn on. You may use Delay subroutine of about 500 ms. The detail need is: a) The program specification (you may include additional specifications or assumptions) b) The flow chart of the program. c) The program listing (include brief comments) d) The circuit diagram of your design. Show the labels and connections between your Atmega32 with 1/0 peripherals CLEARLY. Use software to show the circuit design
