Module $5/6$ Assignment: Shear and Moment Diagram, CM $2501/2500$

Name:

Your submission must include this completed worksheet as a $.$pdf file. One page only.

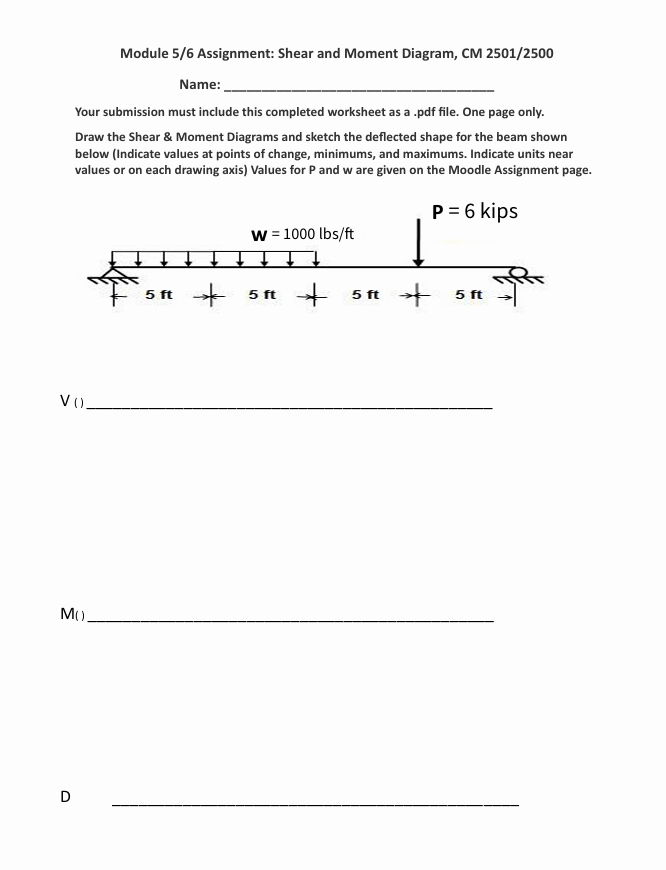

Draw the Shear $\backslash$& Moment Diagrams and sketch the deflected shape for the beam shown below $($Indicate values at points of change, minimums, and maximums. Indicate units near values or on each drawing axis$)$ Values for P and w are given on the Moodle Assignment page.

$\backslash (\backslash$mathrm$\{$V$\}(\backslash$mathrm$\{)\}\backslash )$
