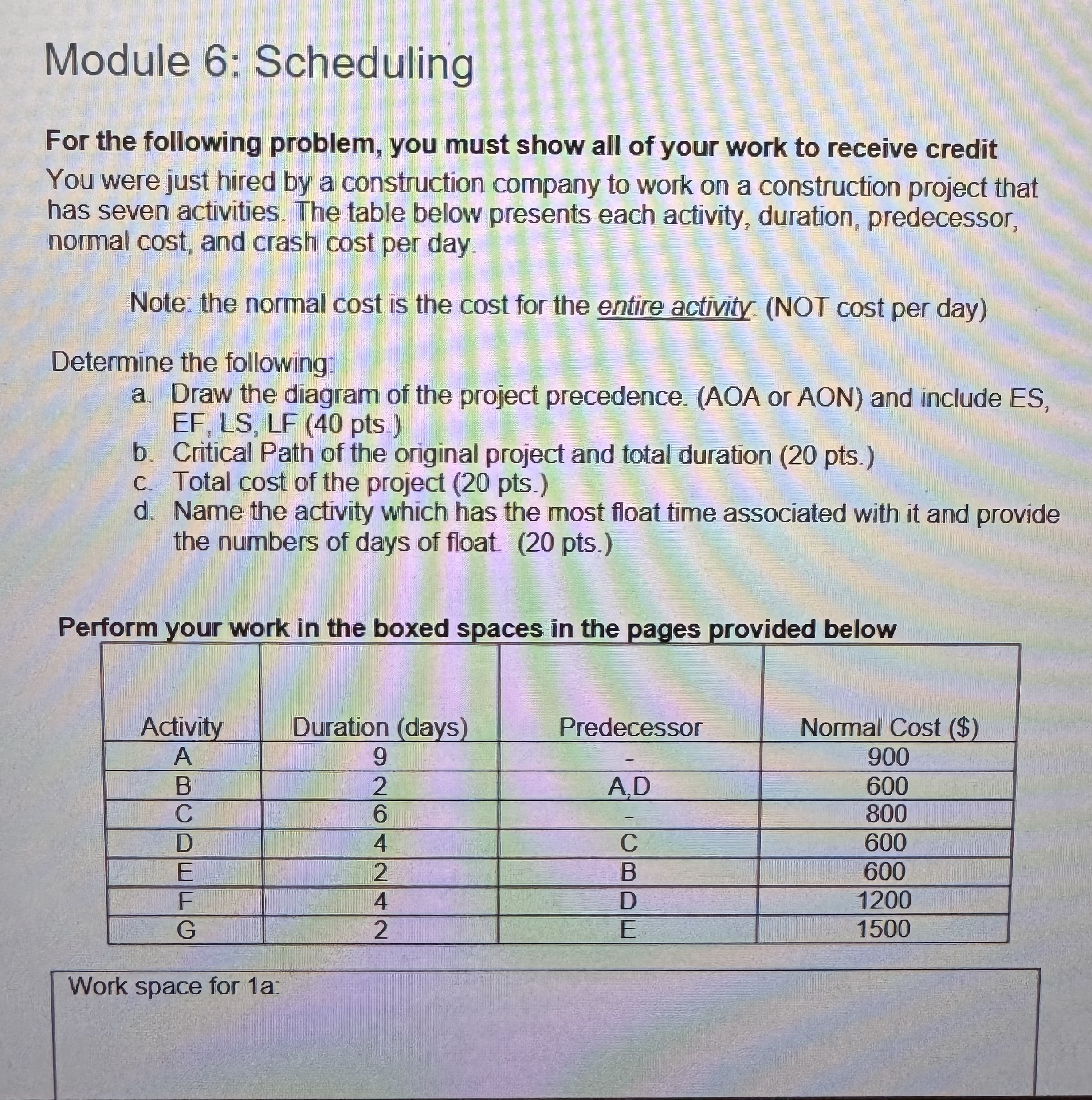

Module $6$: Scheduling

For the following problem, you must show all of your work to receive credit You were just hired by a construction company to work on a construction project that has seven activities. The table below presents each activity, duration, predecessor, normal cost, and crash cost per day.

Note: the normal cost is the cost for the entire activity $($NOT cost per day$)$

Determine the following:

a$.$ Draw the diagram of the project precedence. $($AOA or AON $)$ and include ES$,$ EF$,$ LS$,$ LF $(40$ pts$.)$

b$.$ Critical Path of the original project and total duration $(20$ pts $.)$

c$.$ Total cost of the project $(20$ pts$.)$

d$.$ Name the activity which has the most float time associated with it and provide the numbers of days of float. $(20$ pts$.)$

Perform your work in the boxed spaces in the pages provided below

$\backslash$table$[[,,,],[$Activity$,$Duration $($days$),$Predecessor,Normal Cost $($$$)],[$A$,9,-,900],[$B$,2,$A$,$D$,600],[$C$,6,-,800],[$D$,4,$C$,600],[$E$,2,$B$,600],[$F$,4,$D$,1200],[$G$,2,$E$,1500]]$

Work space for $1$ a :
