Moore Machine:

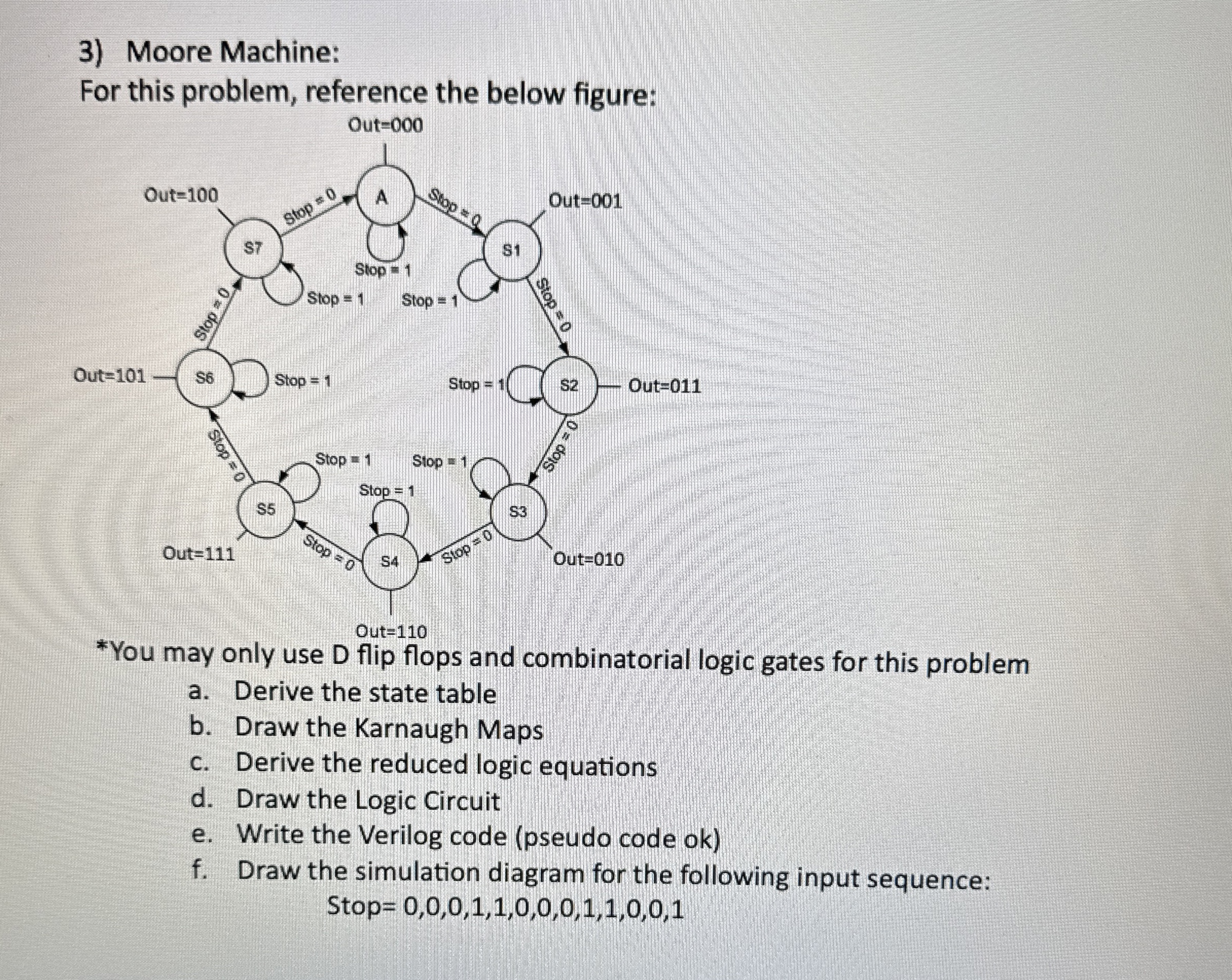

For this problem, reference the below figure:

Out$=000$

Out$=110$

$*$You may only use D flip flops and combinatorial logic gates for this problem

a$.$ Derive the state table

b$.$ Draw the Karnaugh Maps

c$.$ Derive the reduced logic equations

d$.$ Draw the Logic Circuit

e$.$ Write the Verilog code $($pseudo code ok$)$

f$.$ Draw the simulation diagram for the following input sequence:

Stop $=0,0,0,1,1,0,0,0,1,1,0,0,1$

Show all work
