Name:

CCE $203-$HW $5\mathrm{.}11$

Date:

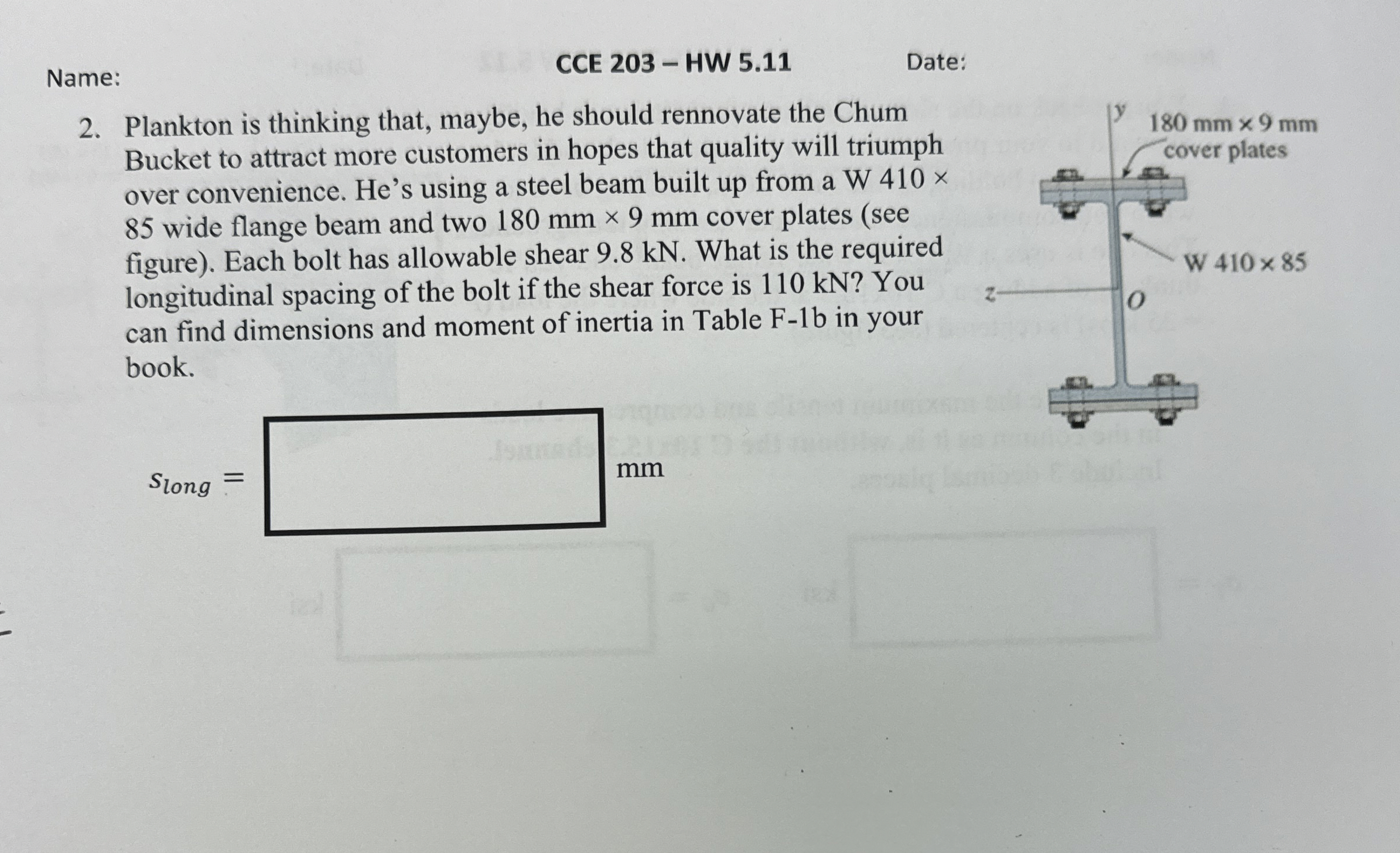

$2.$ Plankton is thinking that, maybe, he should rennovate the Chum Bucket to attract more customers in hopes that quality will triumph over convenience. He's using a steel beam built up from a W $41085$ wide flange beam and two $180mm9mm$ cover plates $($see figure$).$ Each bolt has allowable shear $9\mathrm{.}8$ kN $.$ What is the required longitudinal spacing of the bolt if the shear force is $110$ kN $?$ You can find dimensions and moment of inertia in Table F$-1$b in your book.

$s_{\text{l}\text{o}\text{n}\text{g}}=$

mm
