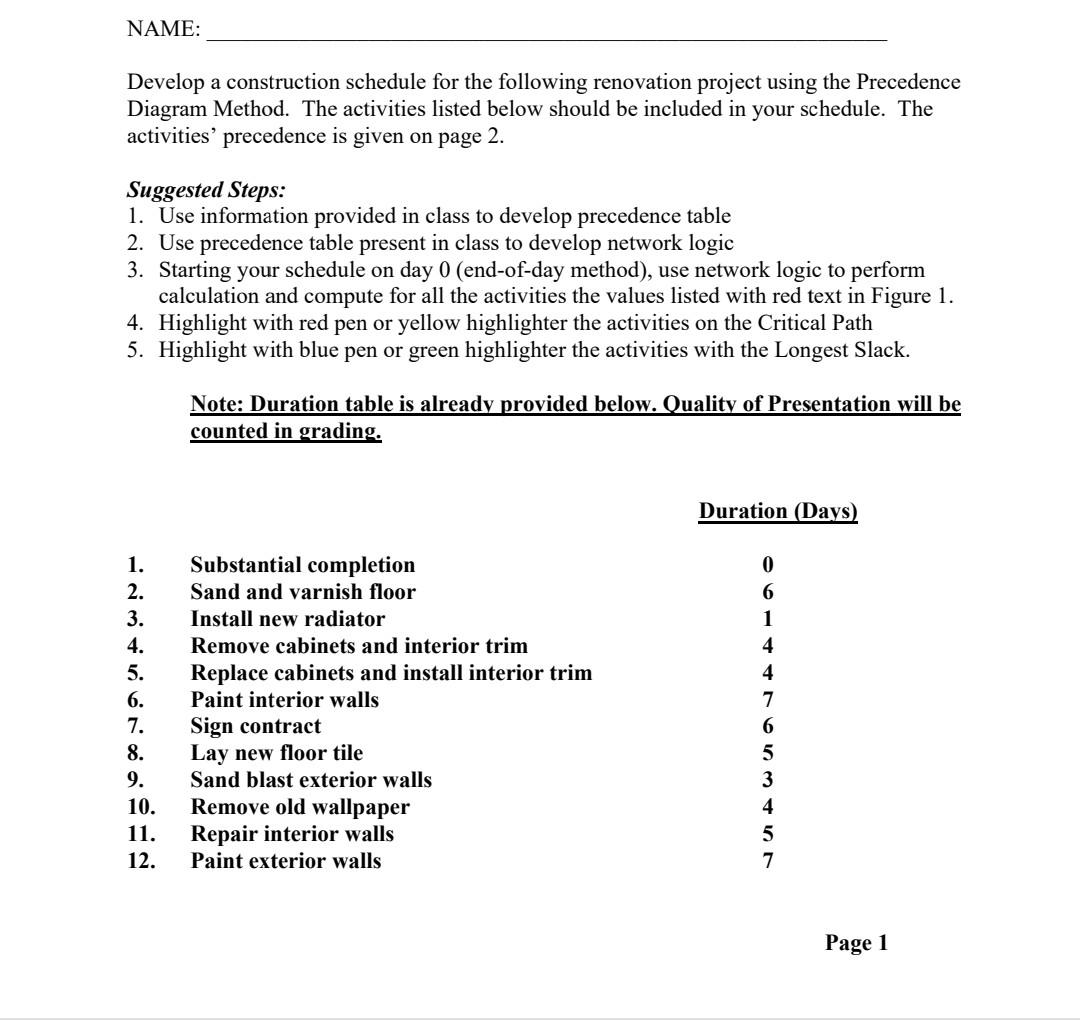

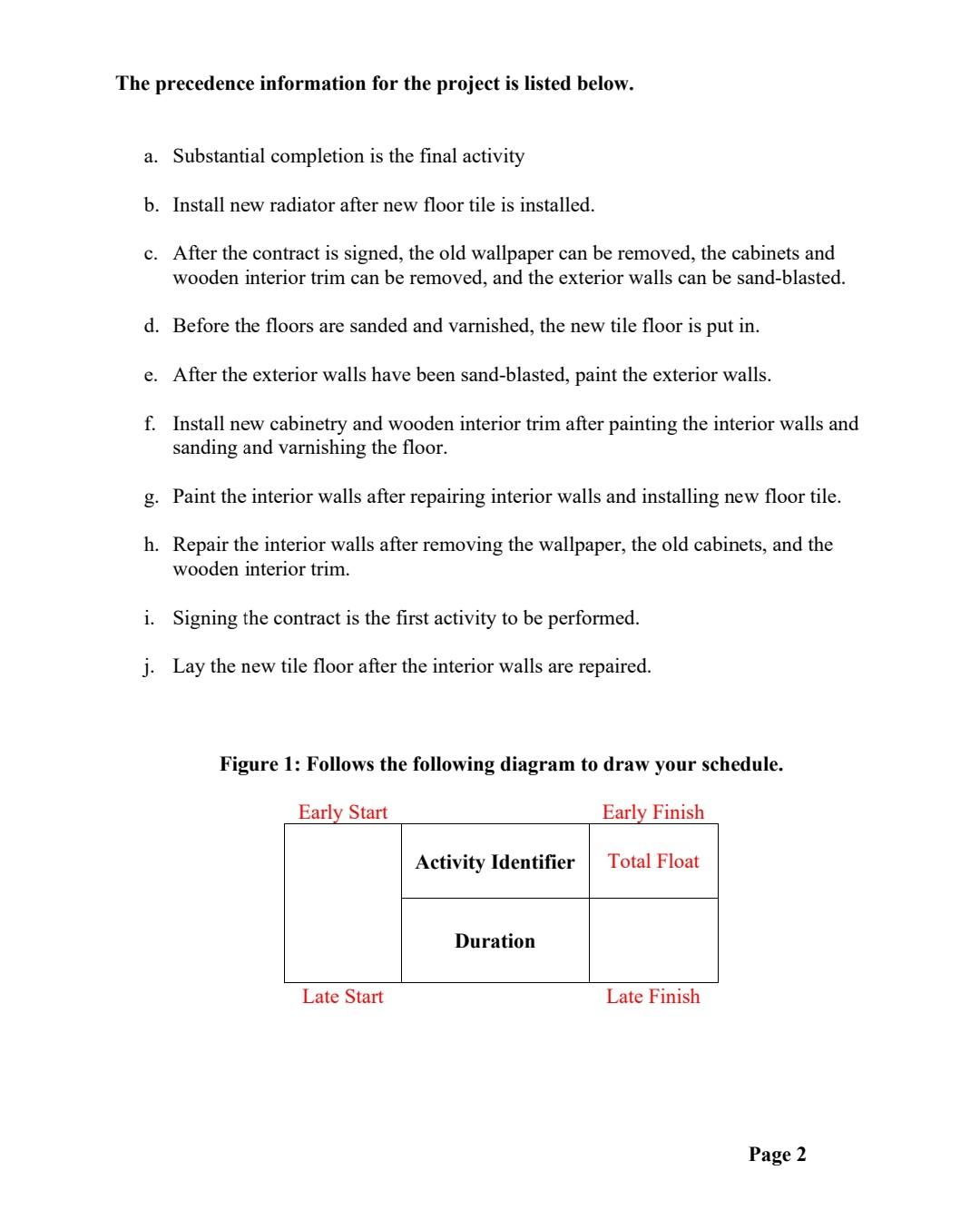

NAME: Develop a construction schedule for the following renovation project using the Precedence Diagram Method. The activities listed below should be included in your schedule. The activities' precedence is given on page 2. Suggested Steps: 1. Use information provided in class to develop precedence table 2. Use precedence table present in class to develop network logic 3. Starting your schedule on day 0 (end-of-day method), use network logic to perform calculation and compute for all the activities the values listed with red text in Figure 1. 4. Highlight with red pen or yellow highlighter the activities on the Critical Path 5. Highlight with blue pen or green highlighter the activities with the Longest Slack. Note: Duration table is already provided below. Quality of Presentation will be counted in grading. Duration (Days) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. Substantial completion Sand and varnish floor Install new radiator Remove cabinets and interior trim Replace cabinets and install interior trim Paint interior walls Sign contract Lay new floor tile Sand blast exterior walls Remove old wallpaper Repair interior walls Paint exterior walls 0 6 1 4 4 7 6 5 3 4 5 7 uwe+ Page 1 The precedence information for the project is listed below. a. Substantial completion is the final activity b. Install new radiator after new floor tile is installed. c. After the contract is signed, the old wallpaper can be removed, the cabinets and wooden interior trim can be removed, and the exterior walls can be sand-blasted. d. Before the floors are sanded and varnished, the new tile floor is put in. e. After the exterior walls have been sand-blasted, paint the exterior walls. f. Install new cabinetry and wooden interior trim after painting the interior walls and sanding and varnishing the floor. g. Paint the interior walls after repairing interior walls and installing new floor tile. h. Repair the interior walls after removing the wallpaper, the old cabinets, and the wooden interior trim. i. Signing the contract is the first activity to be performed. j. Lay the new tile floor after the interior walls are repaired. Figure 1: Follows the following diagram to draw your schedule. Early Start Early Finish Activity Identifier Total Float Duration Late Start Late Finish Page 2
