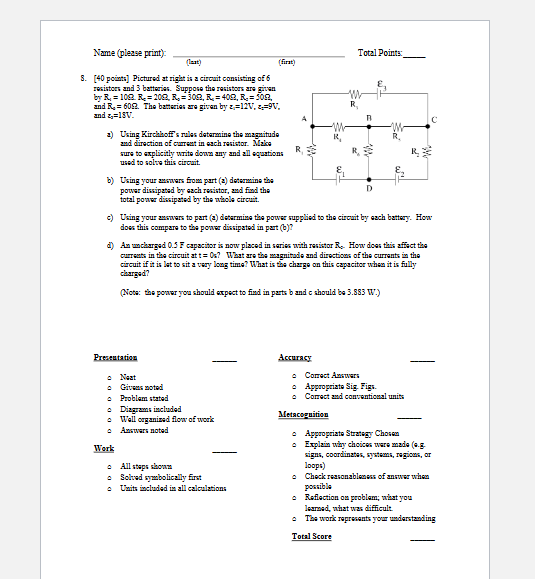

Name (please print): Total Points: . [40 points] Pictured at right is a circrent consisting of 6 resistors and 3 batteries. Suppose the resistors are given by R, = 108. R. = 102, R. = 308, R = 408, R. = 102, and R. = 6012. The batteries are given by z =12V, 2,=9V. and & =1EV. 2) Using Kirchhoff's rules determine the magnitude and direction of current in each resistor. Makes sure to explicitly write down any and all equations R. used to solve this circant. b) Using your awwers from part (2) determine the power dissipated by each resistor, and find the D total power dissipated by the whole circuit. g) Using your awwwers to part (2) determine the power supplied to the circuit by each battery. How does this compare to the power dissipated in part (b)7 d) Am uncharged 0.5 F capacitor is now placed in varies with resistor Ra- How does this affect the currents in the circuit at : = 067 What are the magnitude and directions of the currents in the circuit if it is let to sit a very long time? What is the charge on this capacitor when it is fully charged? (Note: the power you should expect to find in parts b and c should be 3.883 W.) Presentation Accuracy Correct Answers Givens noted Appropriate Sig. Figs. Problem stated a Comact and conventional units Diagrams included Well organized flow of work Metacognition Answers noted Appropriate Strategy Chosen Work Explain why choices were made (o.[. signk, coordinates, systems, regions, or All steps shown loops) Solved gambolically first Check reasonableness of answer whom a Units included in all calculations Reflection on problem; what you learned, what was difficult The work represents your understanding Total Score
