NAME:

Solve the problem below using the requested methods. Follow

the steps outlined in the chapter and show your work in a

logical and organized way.

Show all work.

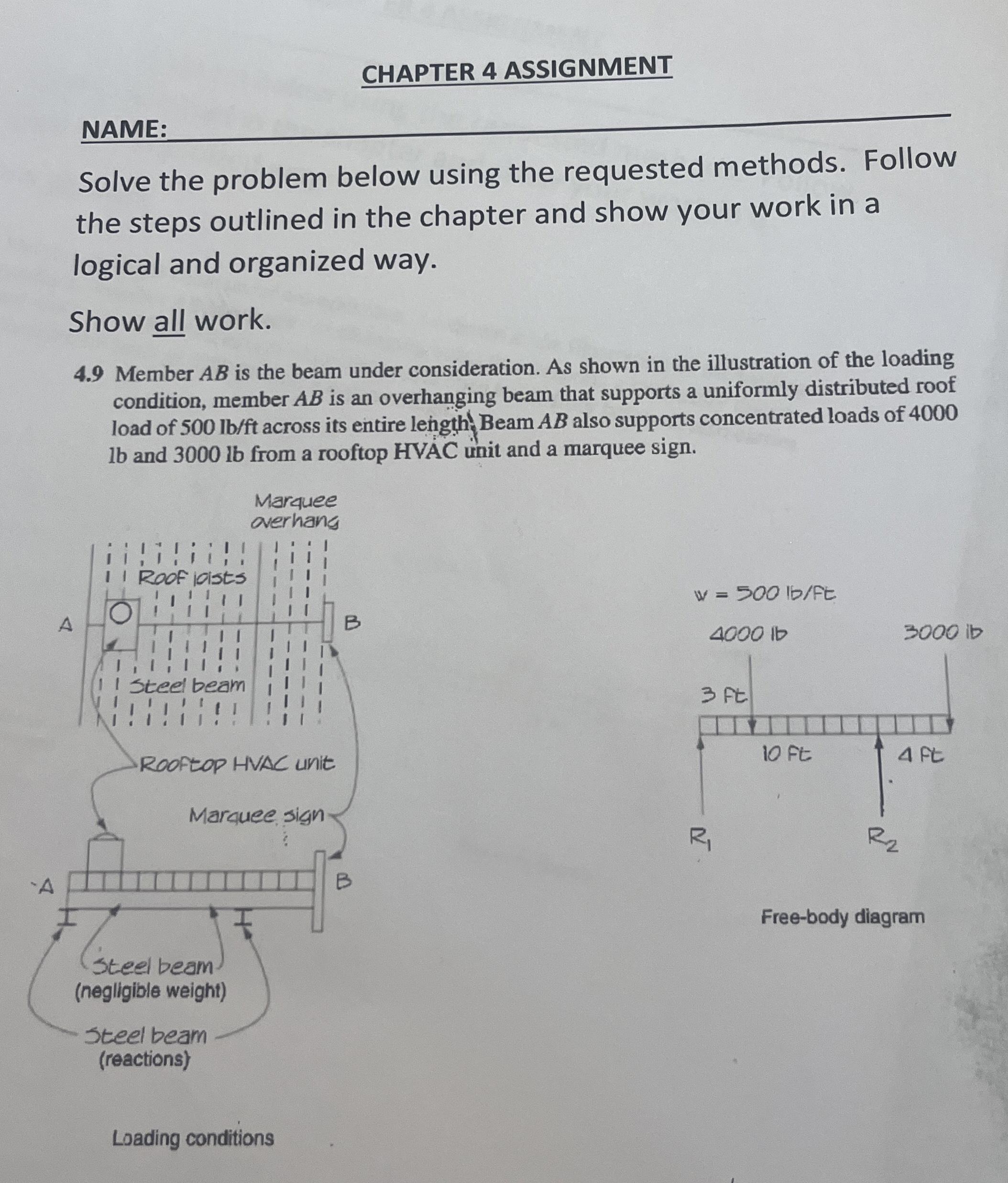

$4\mathrm{.}9$ Member $AB$ is the beam under consideration. As shown in the illustration of the loading

condition, member $AB$ is an overhanging beam that supports a uniformly distributed roof

load of $500l\frac{b}{f}t$ across its entire length Beam $AB$ also supports concentrated loads of $4000$

lb and $3000$ lb from a rooftop HVAC unit and a marquee sign.
