Question: Need help with the Gantt chart through a carefully choreographed process. Aircraft only make money when they are in the air! This chart provides a

Need help with the Gantt chart

Need help with the Gantt chart through a

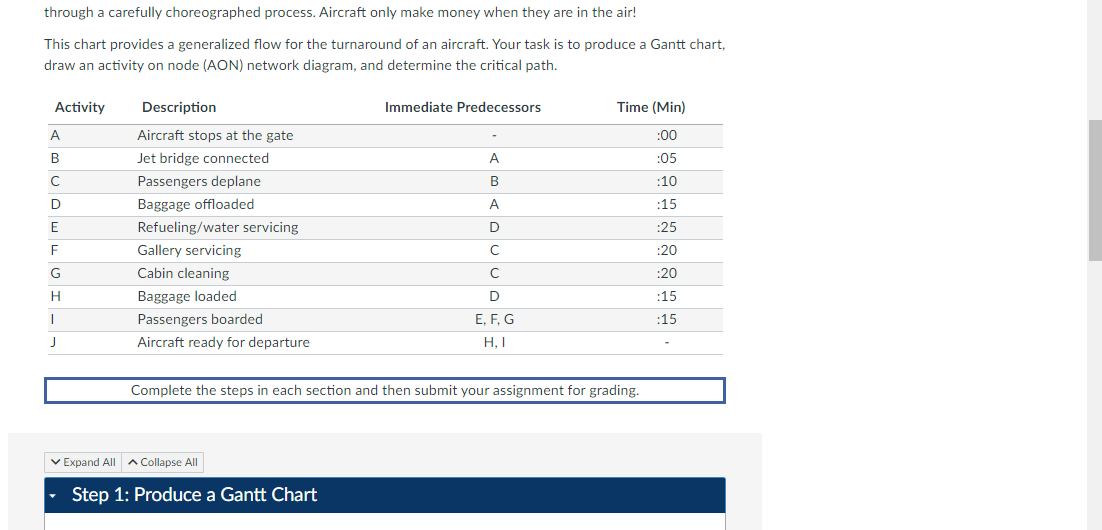

through a carefully choreographed process. Aircraft only make money when they are in the air! This chart provides a generalized flow for the turnaround of an aircraft. Your task is to produce a Gantt chart, draw an activity on node (AON) network diagram, and determine the critical path. Activity Immediate Predecessors Time (Min) A :00 :05 B A B :10 D Description Aircraft stops at the gate Jet bridge connected Passengers deplane Baggage offloaded Refueling/water servicing Gallery servicing Cabin cleaning Baggage loaded Passengers boarded Aircraft ready for departure :15 :25 E D F :20 G H I D E, F, G HI :20 :15 :15 J Complete the steps in each section and then submit your assignment for grading. Expand All A Collapse All Step 1: Produce a Gantt Chart
