Question: Need help with the truth table and k maps 1 1 . 1 2 Using a truth table similar to Eigure 1 1 - 8

Need help with the truth table and k maps

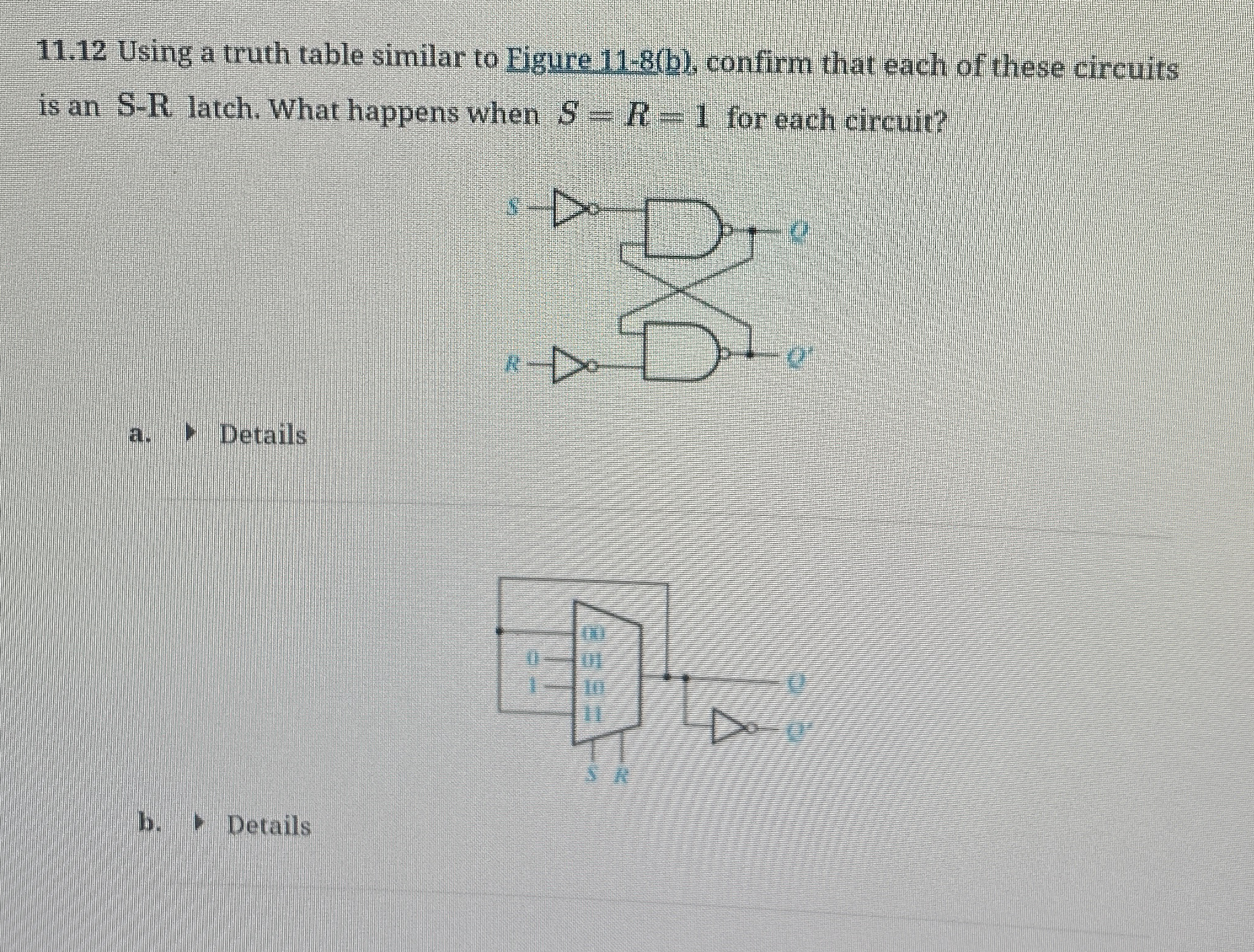

11.12 Using a truth table similar to Eigure 11-8(b), confirm that each of these circuits is an S-R latch. What happens when S=R=1 for each circuit?
a. Details
b. Details
Need help with the truth table and k maps 1 1 . 1
